Description
IEC 61850-3 Ethernet-to-fiber media converters
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFP)
- Power failure alarm by relay output (LV model only)
- 40 to 85°C operating temperature range
- Redundant dual DC power inputs
- Integrated high-reliability power supply eliminates the need for external power transformer
- Compliant with EN 50121-4 and essential sections of EN 50155
Key Features
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Power failure alarm by relay output (LV model only)
- -40 to 85°C operating temperature range
- Redundant dual DC power inputs (LV model only)
- Integrated high-reliability power supply eliminates the need for external power transformer
Description

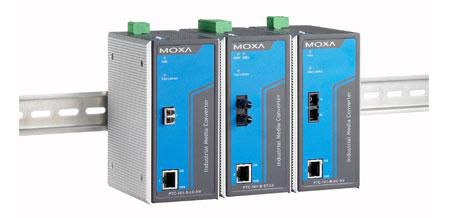

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD and vibration.- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFP)
- Power failure alarm by relay output (LV model only)
- 40 to 85°C operating temperature range
- Redundant dual DC power inputs
- Integrated high-reliability power supply eliminates the need for external power transformer
- Compliant with EN 50121-4 and essential sections of EN 50155
Specifications
| Network | |
|---|---|
| Converter input interface | 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Converter output interface | 100Base-FX |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | LC |
| Performance | |
| Wavelength | 1300 nm |
| Maximum transfer distance | 5000 m |
| Fiber mode structure | Multi-mode |
| Sensitivity | -32 dBmW |
| Tx power (min) | -20 dBmW |
| Tx power (max) | -14 dBmW |
| Mean time between failures (MTBF) | 1211613 h |
| Link budget | 12 dB |
| Features | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Blue, Grey |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | LC |
| Weight & dimensions | |
| Weight | 690 g |
| Dimensions (WxDxH) | 66.65 x 123.46 x 152.15 mm |
| Package weight | 875 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 875 g |
| Technical details | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Wavelength | 1300 nm |
| Maximum transfer distance | 5000 m |
| Fiber mode structure | Multi-mode |
| Sensitivity | -32 dBmW |
| Tx power (min) | -20 dBmW |
| Tx power (max) | -14 dBmW |
| Link budget | 12 dB |
| Internal | No |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Safety | UL 60950-1 |
| LED indicators | Yes |
| Product colour | Blue, Grey |
| Certification | WEEE |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 1211613 h |
| Colour | |
| Product colour | Blue, Grey |
| Certificates | |
| Safety | UL 60950-1 |
| Certification | WEEE |
| Compliance certificates | RoHS |
| Other features | |
| Link budget | 12 dB |
| Dimensions (WxDxH) | 66.65 x 123.46 x 152.15 mm |
