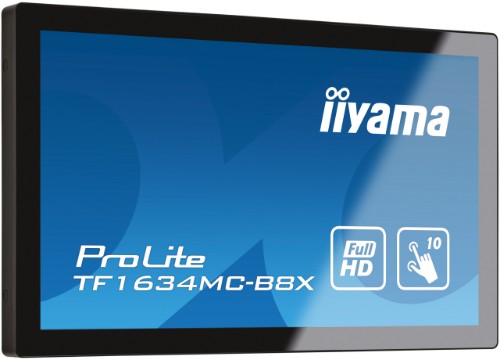

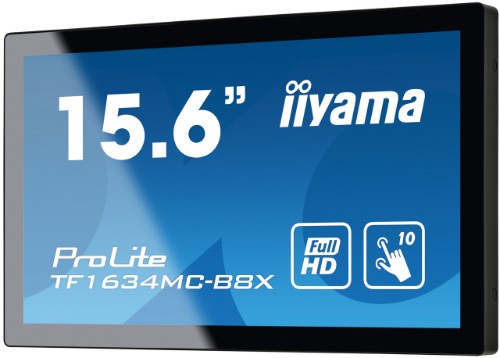

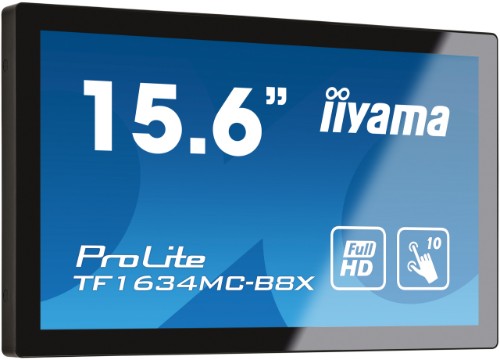

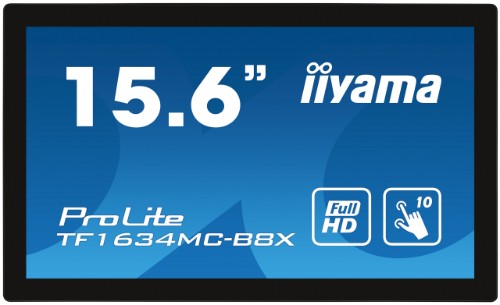

15.6" Full HD 10 point PCAP Open Frame touchscreen featuring IPS Panel Technology and touch through glass function
Reasons To Buy
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Full HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
Description
The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
450 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.2 million colours |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
60 Hz |
| HD type |
Full HD |
| Display technology |
LED |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.179 x 0.179 mm |
| Horizontal scan range |
30 - 84 kHz |
| Viewable size, horizontal |
34.4 cm |
| Viewable size, vertical |
19.4 cm |
| Display resolution |
1920 x 1080 pixels |
| Response time |
25 ms |
| Display diagonal |
39.6 cm (15.6") |
| Contrast ratio (typical) |
700:1 |
| Surface hardness |
7H |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Panel type |
IPS |
| Display diagonal (metric) |
39.5 cm |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Display brightness |
450 cd/m² |
| Response time measurement type |
GTG (Gray to Gray) |
| Performance |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Management features |
|---|
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
7 |
| Multimedia |
|---|
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
|---|
| Product colour |
Black |
| Front bezel colour |
Black |
| International Protection (IP) code |
IP65 |
| Glass thickness |
2.4 mm |
| Camera |
|---|
| Built-in camera |
No |

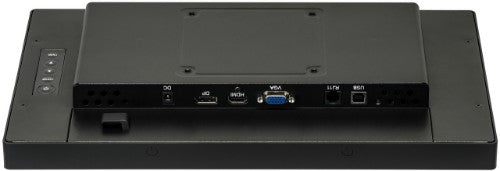

| Ports & interfaces |
|---|
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| HDMI |
Yes |
| USB Touch port |
Yes |
| Technical details |
|---|
| Height (without stand) |
230.5 mm |
| Depth (without stand) |
46 mm |
| Width (without stand) |
381 mm |
| Placement supported |
Horizontal/Vertical |
| HDMI |
Yes |
| Display viewable area (HxV) |
344.2 x 193.5 mm |
| Built-in microphone |
No |
| Product colour |
Black |
| Products per pallet |
78 pc(s) |
| Front bezel colour |
Black |
| Sustainability certificates |
ErP |
| Pallet net width |
11.5 cm |
| Pallet net height |
9.7 cm |
| Pallet net length |
20.4 cm |
| Compliance certificates |
CE, REACH, RoHS, WEEE |
| Power supply type |
External |
| Weight (with stand) |
2 kg |
| Surface hardness |
7H |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Ergonomics |
|---|
| Wall mountable |
Yes |

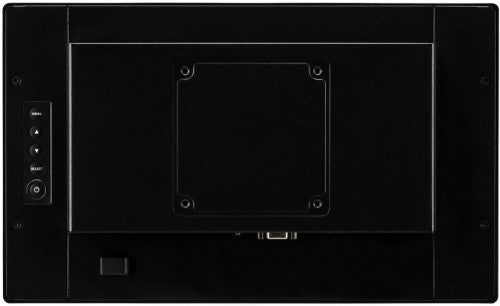

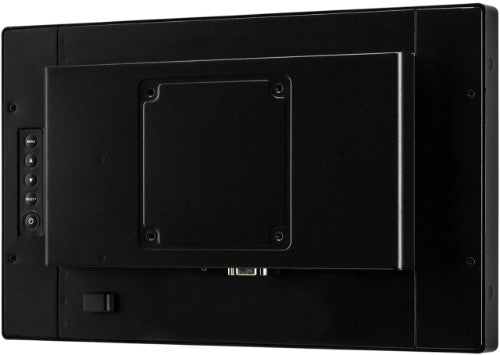

| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
7 |
| Power |
|---|
| Power supply type |
External |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
18 W |
| Power consumption (off) |
0.3 W |
| AC adapter output voltage |
12 V |
| Energy efficiency class (SDR) |
F |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| European Product Registry for Energy Labelling (EPREL) code |
391713 |
| Weight & dimensions |
|---|
| Height (without stand) |
230.5 mm |
| Depth (without stand) |
46 mm |
| Width (without stand) |
381 mm |
| Width (with stand) |
381 mm |
| Depth (with stand) |
46 mm |
| Height (with stand) |
230.5 mm |
| Weight (with stand) |
2 kg |
| Weight (without stand) |
2 kg |
| Package width |
455 mm |
| Package depth |
455 mm |
| Package height |
365 mm |
| Package weight |
3.9 kg |
| Packaging data |
|---|
| Package width |
455 mm |
| Package depth |
455 mm |
| Package height |
365 mm |
| Package weight |
3.9 kg |
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
391713 |
| Sustainability certificates |
ErP |
| Other features |
|---|
| Placement supported |
Horizontal/Vertical |
| Display viewable area (HxV) |
344.2 x 193.5 mm |
| International Protection (IP) code |
IP65 |
| Compliance certificates |
CE, REACH, RoHS, WEEE |
| Height (without stand) |
230.5 mm |
| Depth (without stand) |
46 mm |
| Width (without stand) |
381 mm |
| Quick start guide |
Yes |
| HDMI |
Yes |
| Surface hardness |
7H |
| Power supply type |
External |
| Touchscreen type |
Multi-user |
| Touchscreen |
Yes |
| Number of simultaneous touchpoints |
10 |
| Products per pallet |
78 pc(s) |
| Front bezel colour |
Black |
| Logistics data |
|---|
| Products per pallet |
78 pc(s) |
| Harmonized System (HS) code |
85285210 |
| Pallet net width |
11.5 cm |
| Pallet net height |
9.7 cm |
| Pallet net length |
20.4 cm |
