Description

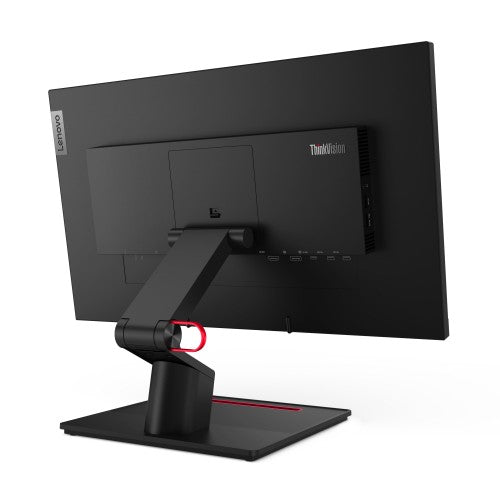

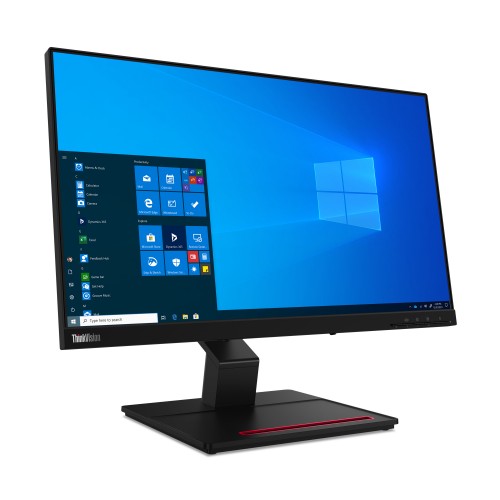

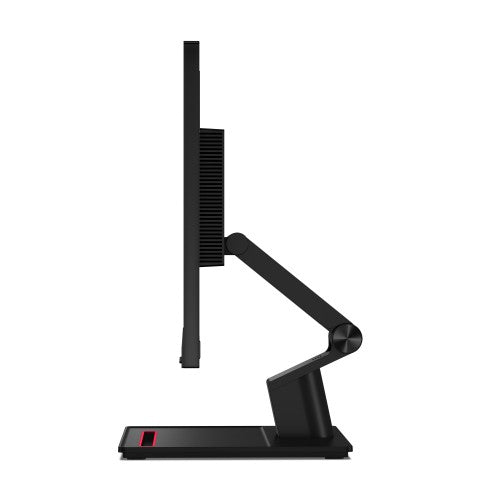

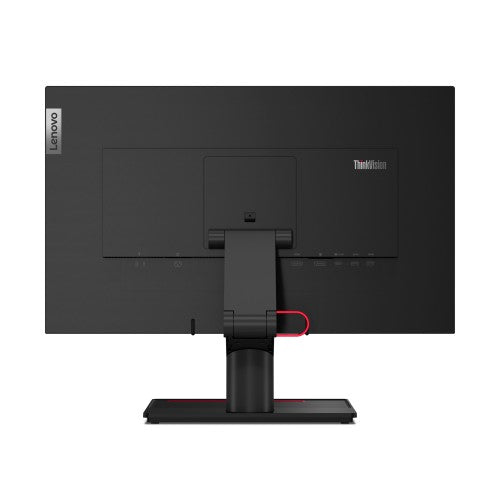

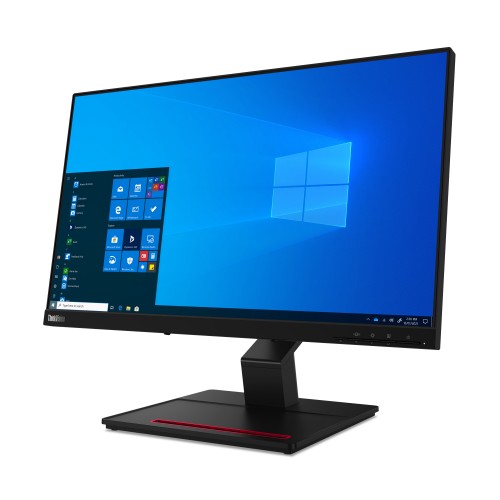

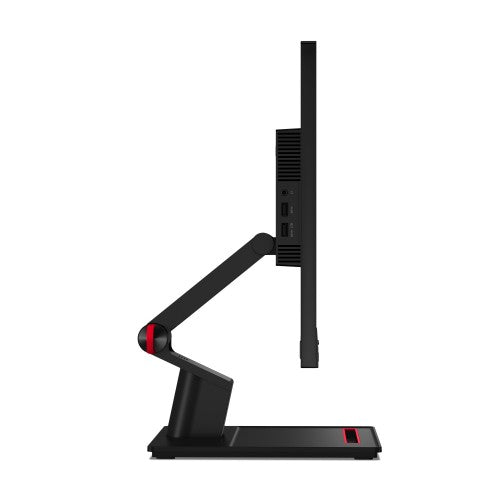

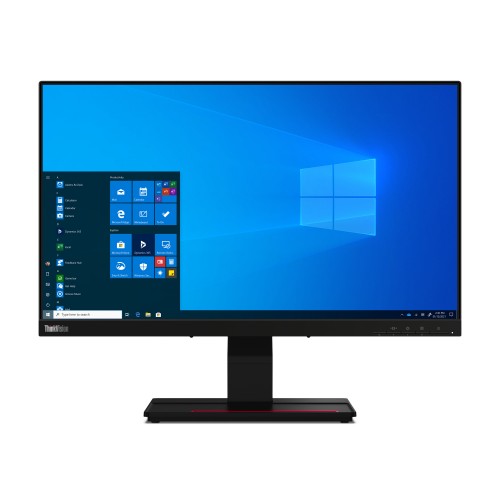

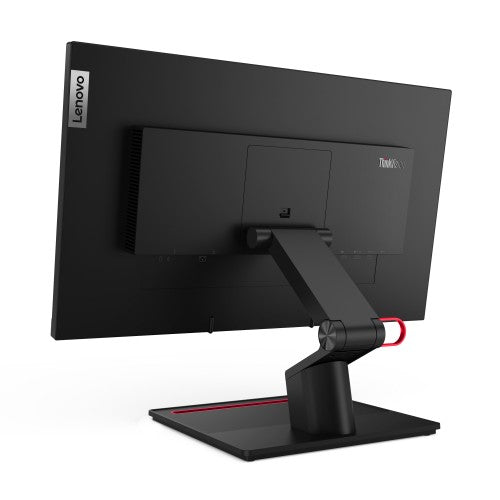

23.8" IPS 1920x1080 Touch, 4 ms (Extreme mode) / 6 ms (Typical mode)
Description
Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Built-in camera | No |
| Display | |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 93 ppi |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 99% |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Backlight type | W-LED |
| Display resolution | 1920 x 1080 pixels |
| Response time | 6 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Response time (fast) | 4 ms |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Colour gamut standard | sRGB |
| Anti-glare screen | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Certification | ENERGY STAR CCC TCO 8.0 TCO Edge 2.0 EPEAT Gold RoHS TÜV |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| USB Power Delivery up to | 90 W |
| Number of USB Type-C upstream ports quantity | 1 |
| Technical details | |
| Height (without stand) | 326.5 mm |
| Depth (without stand) | 44.1 mm |
| Width (without stand) | 539.8 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Built-in microphone | No |
| Product colour | Black |
| Multi-touch | Yes |
| Weight (with stand) | 5.85 kg |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 70° |
| On Screen Display (OSD) | Yes |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Adjustable height (max) | 9 cm |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 150 W |
| Power consumption (typical) | 25 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 573029 |
| Weight & dimensions | |
| Height (without stand) | 326.5 mm |
| Depth (without stand) | 44.1 mm |
| Width (without stand) | 539.8 mm |
| Width (with stand) | 539.8 mm |
| Depth (with stand) | 244.1 mm |
| Height (with stand) | 340.5 mm |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 2.22 cm |
| Weight (with stand) | 5.85 kg |
| Weight (without stand) | 3.79 kg |
| Package width | 622 mm |
| Package depth | 172 mm |
| Package height | 421 mm |
| Package weight | 8.31 kg |
| Packaging data | |
| Package width | 622 mm |
| Package depth | 172 mm |
| Package height | 421 mm |
| Package weight | 8.31 kg |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 573029 |
| Other features | |
| Multi-touch | Yes |
| Certification | ENERGY STAR CCC TCO 8.0 TCO Edge 2.0 EPEAT Gold RoHS TÜV |
| Height (without stand) | 326.5 mm |
| Depth (without stand) | 44.1 mm |
| Width (without stand) | 539.8 mm |
| Power consumption (max) | 150 W |
| HDMI | Yes |
| USB Power Delivery up to | 90 W |
| Energy efficiency scale | A to G |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Certificates | |
| Certification | ENERGY STAR CCC TCO 8.0 TCO Edge 2.0 EPEAT Gold RoHS TÜV |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
