Description

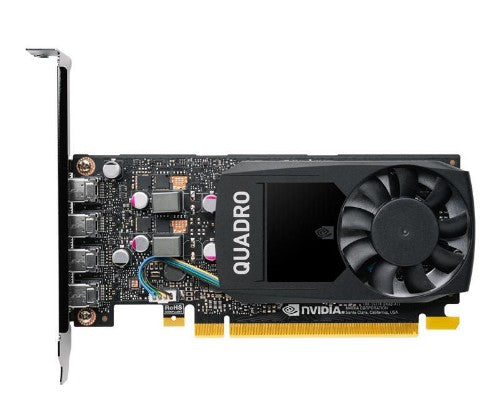

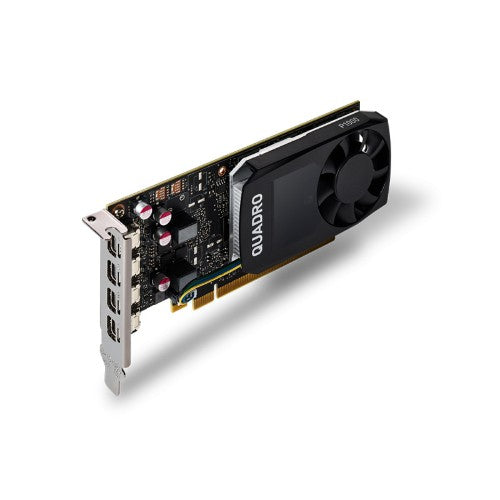

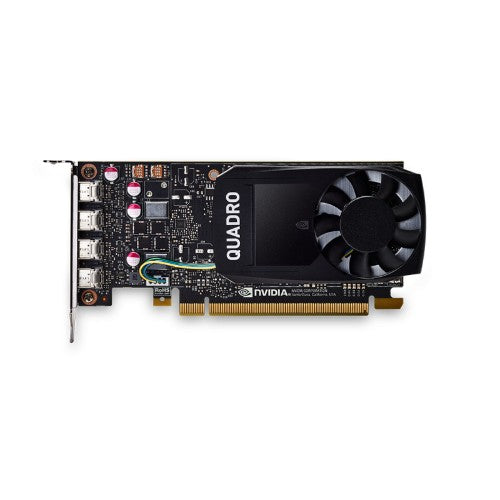

NVIDIA Quadro P1000 V2, 5120 x 2880, 4 GB GDDR5, 128-bit, PCI Express x16 3.0, 4 x mDP 1.4, Shader 5.1, OpenGL 4.5, DirectX 12, 47W
The Quadro P1000 combines a 640 CUDA core Pascal GPU, 4 GB GDDR5 on-board memory and advanced display technologies in a low-profile form factor to deliver amazing graphics performance for demanding professional applications. Support for four 4K displays (4096x2160 @ 60Hz) with HDR color gives you an expansive visual workspace to see your ideas come to life in stunning detail.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
Description
NVIDIA Quadro P1000 V2 — Full Professional Performance and Features in a Small Form Factor.The Quadro P1000 combines a 640 CUDA core Pascal GPU, 4 GB GDDR5 on-board memory and advanced display technologies in a low-profile form factor to deliver amazing graphics performance for demanding professional applications. Support for four 4K displays (4096x2160 @ 60Hz) with HDR color gives you an expansive visual workspace to see your ideas come to life in stunning detail.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
Specifications
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| CUDA cores | 640 |
| CUDA | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Graphics processor | Quadro P1000 V2 |
| Memory | |
| Discrete graphics card memory | 4 GB |
| Memory bandwidth (max) | 82 GB/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR5 |
| Ports & interfaces | |

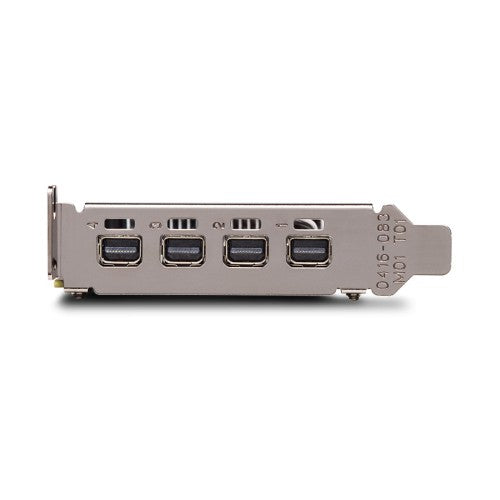

| Mini DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| Interface type | PCI Express x16 3.0 |
| Video | |
| DirectX version | 12.0 |
| Shader model version | 5.1 |
| OpenGL version | 4.5 |
| HDCP | No |
| CUDA cores | 640 |
| Performance | |
| DirectX version | 12.0 |
| Shader model version | 5.1 |
| OpenGL version | 4.5 |
| HDCP | No |
| Design | |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Product colour | Black |
| Number of slots | 1 |
| Certification | Reach, CE, PCN |
| Bracket height | Low-Profile (LP) |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (max) | 47 W |
| Weight & dimensions | |
| Number of slots | 1 |
| Height | 68.9 mm |
| Length | 145 mm |
| Technical details | |
| Cooling type | Active |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Product colour | Black |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Minimum RAM | 1024 MB |
| Minimum storage drive space | 200 MB |
| Packaging content | |
| User guide | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Certificates | |
| Certification | Reach, CE, PCN |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Packaging data | |
| User guide | Yes |
| Manual | Yes |
