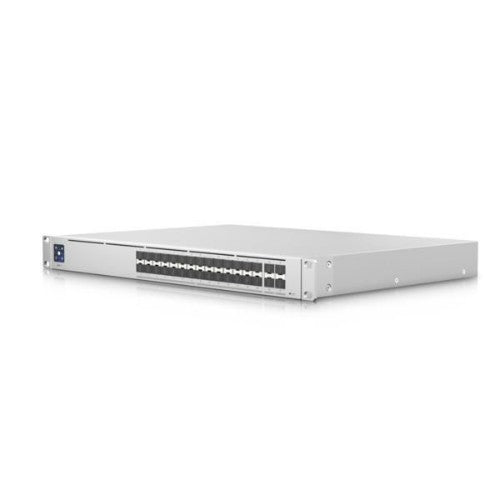

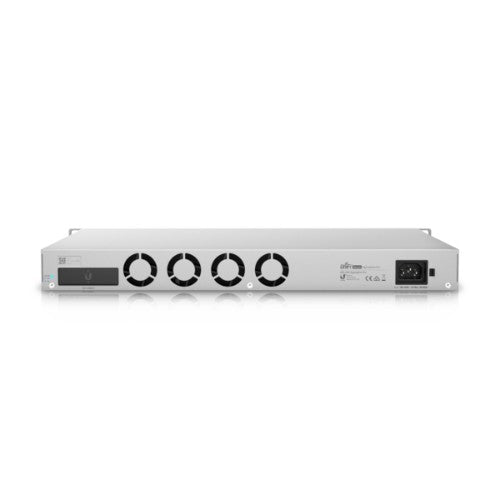

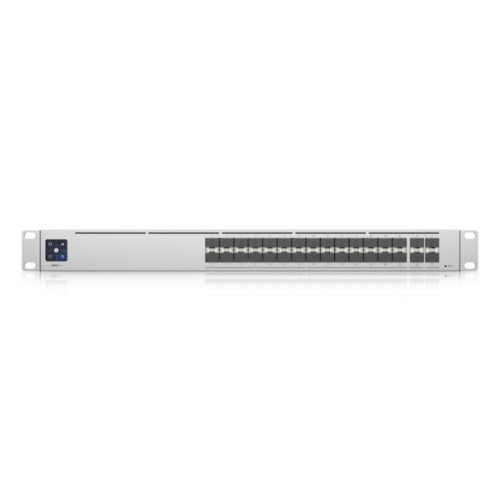

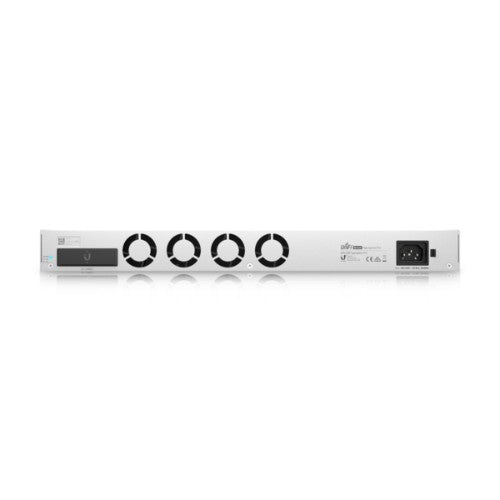

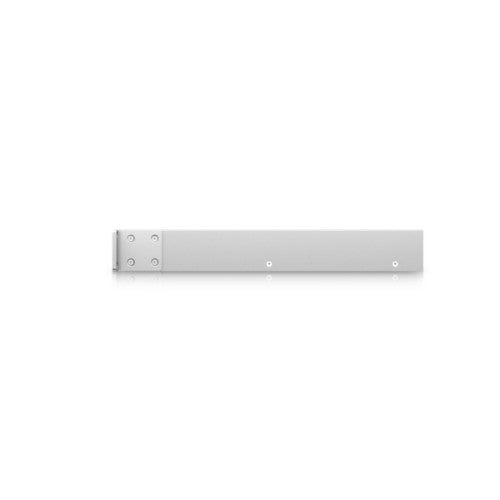

Fully Managed Layer 3 Switch, with (4) 25G SFP28 Ports and (28) 10G SFP+ Ports
Key Features
- (28) 10Gbps SFP+
- (4) 25Gbps SFP28
- 760 Gbps switching capacity
- (1) 1.3” Touchscreen with AR switch management
- (1) Backup 12V DC input connector, SmartPower RPS
Description
Featuring a 1.3” touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
28 |
| Basic switching RJ-45 Ethernet ports quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
No |
| Power connector |
DC-in jack |
| SFP28 ports quantity |
4 |
| Network |
|---|
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| 10G support |
Yes |
| Data transmission |
|---|
| Throughput |
380 Mpps |
| Switching capacity |
760 Gbit/s |
| Static route |
Yes |
| Forwarding rate |
565.44 Mpps |
| Security |
|---|
| DHCP features |
DHCP server |
| Design |
|---|
| Product colour |
Grey |
| LED indicators |
Yes |
| Housing material |
Steel |
| Number of fans |
4 fan(s) |
| Power |
|---|
| Power consumption (max) |
100 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
2 A |
| DC input voltage |
11.5 V |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
442 mm |
| Depth |
325 mm |
| Height |
44 mm |
| Weight |
4.6 kg |
| Technical details |
|---|
| Product colour |
Grey |
| Housing material |
Steel |
| Performance |
|---|
| Harmonized System (HS) code |
85176990 |
| Indication |
|---|
| LED indicators |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
