Description

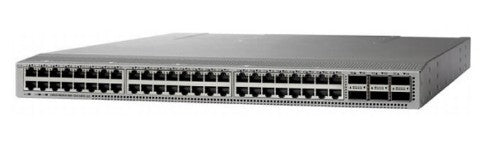

48 x 100M/1/2.5/5/10 Gbps BASE-T ports 6 x 40/100 Gbps QSFP28 ports
Cisco Nexus 9300-EX and 9300-FX platform switches offer a variety of interface options to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10- and 40-Gbps speeds to 50 and 100 Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
The platform hardware is capable of collecting comprehensive Cisco Tetration Analytics™ telemetry information at line rate across all the ports without adding any latency to the packets or negatively affecting switch performance. This telemetry information is exported every 100 milliseconds by default directly from the switch’s Application-Specific Integrated Circuit (ASIC). This information consists of three types of data:
- Flow information: This information contains information about endpoints, protocols, ports, when the flow started, how long the flow was active, etc.
- Interpacket variation: This information captures any interpacket variations within the flow. Examples include variation in Time To Live (TTL), IP and TCP flags, payload length, etc.
- Context details: Context information is derived outside the packet header, including variation in buffer utilization, packet drops within a flow, association with tunnel endpoints, etc.
Description
Based on Cisco Cloud Scale technology, the Cisco Nexus® 9300-EX and 9300-FX platforms are the next generation of fixed Cisco Nexus 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.Cisco Nexus 9300-EX and 9300-FX platform switches offer a variety of interface options to transparently migrate existing data centers from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25 Gbps at the server, and from 10- and 40-Gbps speeds to 50 and 100 Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.
The platform hardware is capable of collecting comprehensive Cisco Tetration Analytics™ telemetry information at line rate across all the ports without adding any latency to the packets or negatively affecting switch performance. This telemetry information is exported every 100 milliseconds by default directly from the switch’s Application-Specific Integrated Circuit (ASIC). This information consists of three types of data:
- Flow information: This information contains information about endpoints, protocols, ports, when the flow started, how long the flow was active, etc.
- Interpacket variation: This information captures any interpacket variations within the flow. Examples include variation in Time To Live (TTL), IP and TCP flags, payload length, etc.
- Context details: Context information is derived outside the packet header, including variation in buffer utilization, packet drops within a flow, association with tunnel endpoints, etc.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| MIB support | Yes |
| Switch layer | L2/L3 |
| Network | |
| IGMP snooping | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 3967 |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 3967 |
| Data transmission | |
| Number of VLANs | 3967 |
| Throughput | 850 Mpps |
| Packet buffer memory | 40 MB |
| MAC address table | 512000 entries |
| Switching capacity | 2160 Gbit/s |
| Optical fiber | |
| Fiber optic connector | QSFP28 |
| Performance | |
| Packet buffer memory | 40 MB |
| Noise level | 77.8 dB |
| Mean time between failures (MTBF) | 319790 h |
| Internal memory | 24000 MB |
| Flash memory | 128000 MB |
| Built-in processor | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Noise level | 77.8 dB |
| Mean time between failures (MTBF) | 319790 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| QSFP+ module slots quantity | 6 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB 2.0 ports quantity | 1 |
| Fiber optic connector | QSFP28 |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) ingress | 5000 |
| Access Control List (ACL) egress | 2000 |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | EIGRP, HSRP, OSPF, RIP-2 |
| Certificates | |
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
| Memory | |
| Packet buffer memory | 40 MB |
| Internal memory | 24000 MB |
| Flash memory | 128000 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
| Rack mounting | Yes |
| Airflow direction | Back-to-front airflow, Front-to-back airflow |
| Number of fans | 4 fan(s) |
| Power | |
| Power consumption (max) | 460 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 276 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4000 m |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 571 mm |
| Height | 44 mm |
