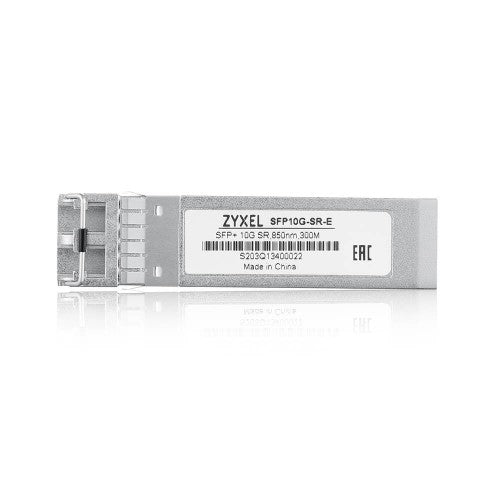

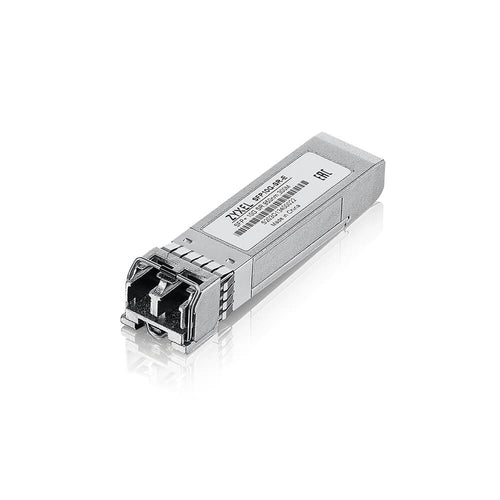

LC, Single mode, 850 nm, 3.14-3.46 V, 300 mA
Description
Hot-pluggable with maximum flexibility
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
No extra cabling cost to upgrade the fiber plant
Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications.
The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
Complete fiber accessory portfolio
We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Technical details |
|---|
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Tx power (min) |
-1 dBmW |
| Tx power (max) |
-8.2 dBmW |
| Rx power (max) |
-11.1 dBmW |
| Performance |
|---|
| Country of origin |
China |
| Product colour |
Steel |
| Brand compatibility |
Zyxel |
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Tx power (min) |
-1 dBmW |
| Tx power (max) |
-8.2 dBmW |
| Rx power (max) |
-11.1 dBmW |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Yes |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Country of origin |
China |
| Product colour |
Steel |
| Brand compatibility |
Zyxel |
| Power |
|---|
| Maximum current |
0.3 A |
| Input voltage |
3.14-3.46 V |
| Weight & dimensions |
|---|
| Width |
14.8 mm |
| Depth |
56.5 mm |
| Height |
11.8 mm |
| Weight |
20 g |
