Description

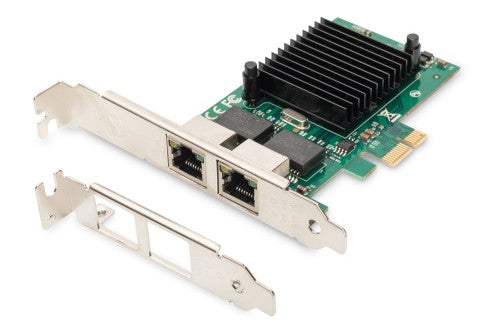

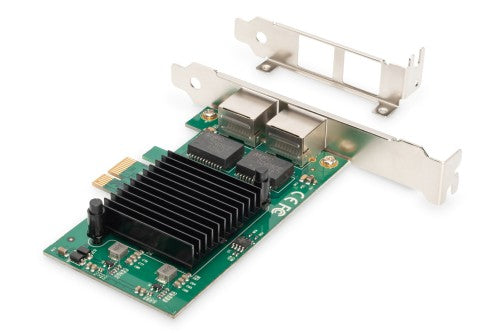

Gigabit Ethernet PCI Express Card, 2-port 32-bit, low profile bracket, Intel chipset
- Gigabit data transfer for each RJ45 port
- Suitable for standard slots & small PC case with low-profile slot
- Intel chipset 82575EB
- RSS, auto MDI/MDIX, IPv4, IPv6
- Jumbo Frames 9.5k, VMDq
The DIGITUS® PCI Express Dual Port Gigabit Network Card with integrated Intel chipset offers the option to make two Gigabit ports for a server or a workstation available via a single PCI slot. Each port is fully compatible in accordance with IEEE802.3/u/ab standards and offers a full Gigabit connection. In addition to supporting IPv4 and IPv6 protocols, the card also supports jumbo frames as well as layer 2 . Its versatile configuration options make the card perfect for using with virtual machines or to set up a router/firewall. The low-profile slot bracket included in delivery also offers the option of integrating the card into compact computer cases in which standard slot brackets cannot be used.
Key Features
- Data transmission speed: 1 Gbps per port
- Connections: 2 x RJ45
- Chipset: Intel 82575EB (JL82575EB)
- PCIe slot: PCI Express X 1
- PCI Express channels: 1

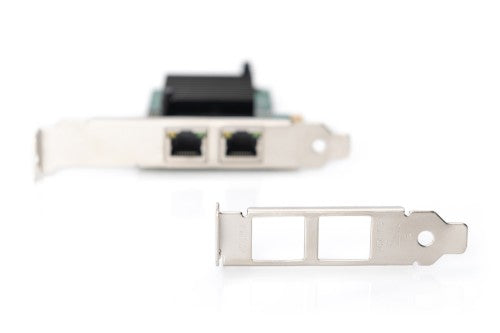

- Additional low-profile slot, so that the card can be used in computers with little space
- Supports PCI bus power management interfaces rev 1.1 specifications
- Complies with IEEE802.3ab, IEEE802.3u and IEEE802.3 specifications
- Half-Duplex @ 10/100 Mbps, Full-Duplex @ 10/100/1000 Mbps
- Supports auto MDI/MDIX crossover at all speeds
- Supports RSS (Receive Side Scaling)
- Supports IPv4, IPv6 protocols
- Supports jumbo frames up to 9.5K
- Supports UDP/TCP and IP checksum offloading
- Supports Virtual Machine Device Queues (VMDq)
- Supports VMDq - next generation (8VMs)
- Supports statistics for management and remote monitoring
- Driver support for MVMware ESXi 6.5 /6.5U1 / 6.5U2 / 6.5U3 / 6.7/ 6.7U1/ 6.7U2/ 6.7U3
- Operating temperature: 0 °C ~ 55 °C
- Operating humidity: 10 - 90% (non condensing)
- Storage temperature: -60 °C ~ 140 °C
- Storage humidity: 10 - 80% (non condensing)
Description
Expand your PC with PCIe slot by 2 Gigabit Ethernet ports with 1000 Mbit/s each- Gigabit data transfer for each RJ45 port
- Suitable for standard slots & small PC case with low-profile slot
- Intel chipset 82575EB
- RSS, auto MDI/MDIX, IPv4, IPv6
- Jumbo Frames 9.5k, VMDq
The DIGITUS® PCI Express Dual Port Gigabit Network Card with integrated Intel chipset offers the option to make two Gigabit ports for a server or a workstation available via a single PCI slot. Each port is fully compatible in accordance with IEEE802.3/u/ab standards and offers a full Gigabit connection. In addition to supporting IPv4 and IPv6 protocols, the card also supports jumbo frames as well as layer 2 . Its versatile configuration options make the card perfect for using with virtual machines or to set up a router/firewall. The low-profile slot bracket included in delivery also offers the option of integrating the card into compact computer cases in which standard slot brackets cannot be used.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCIe |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Intel® 82575EB |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x |
| LAN controller | Intel® 82575EB |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Design | |
| Chipset | Intel® 82575EB |
| Internal | Yes |
| Country of origin | China |
| Component for | Server |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Other operating systems supported | FreeBSD, VMware vSphere ESXi |
| System requirements | |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Other operating systems supported | FreeBSD, VMware vSphere ESXi |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Other operating systems supported | FreeBSD, VMware vSphere ESXi |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Other features | |
| Chipset | Intel® 82575EB |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
