Description
Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials

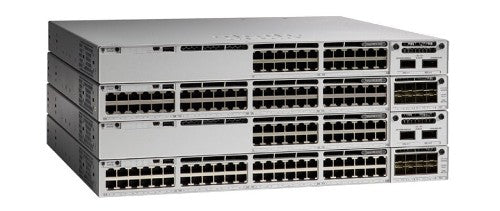

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 1TB, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) architecture which not only protects your investment but also allows a larger scale and higher throughput. Catalyst 9300X models are based on a new ASIC, UADP 2.5sec, which adds Crypto support in hardware, including IPSEC. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Description
Built for security, IoT, mobility, and cloudThe Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 1TB, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) architecture which not only protects your investment but also allows a larger scale and higher throughput. Catalyst 9300X models are based on a new ASIC, UADP 2.5sec, which adds Crypto support in hardware, including IPSEC. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | Yes |
| Performance | |
| Stackable | Yes |
| Internal memory | 16000 MB |
| Flash memory | 16000 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Stackable | Yes |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP28 ports quantity | 24 |
| Data transmission | |
| Jumbo frames | 9198 |
| MAC address table | 32000 entries |
| Switching capacity | 2000 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 1488 Mpps |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Internal memory | 16000 MB |
| Flash memory | 16000 MB |
| Design | |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 447 mm |
| Depth | 445 mm |
| Height | 44 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
