300 dpi, LH, Euro and UK Cord, USB, Serial, Ethernet, Bluetooth 4.1, Dual USB Host, Color Touch, ZPL
Description

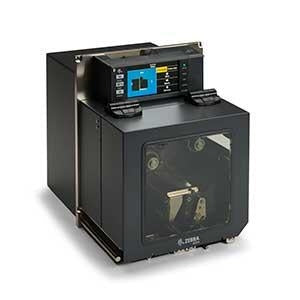

Advancing the ZE500 Series, the 4-inch ZE511 offers print speeds up to 18 ips. For premium print resolution, choose the 600 dpi option. Available in left- and right-hand orientations, it features a standard full-color, rotatable touch display that can be remotely mounted up to two meters. Add it to your existing wired and wireless networks, or connect directly to a PC. Use the included Print Touch tag (NFC) to simply tap a compatible mobile device to pair and print. Add field-installable features like connectivity and RFID.
Specifications
| Printing |
|---|
| Type |
POS printer |
| Print technology |
Thermal transfer |
| Print speed |
356 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Number of printable dots |
12 dot |
| Performance |
|---|
| Type |
POS printer |
| Print technology |
Thermal transfer |
| Print speed |
356 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Built-in barcodes |
Code 93, QR Code, Code 11, EAN128, MaxiCode, Code 128 (A/B/C), UPC-A, PDF417, UPC-E |
| Paper handling |
|---|
| Printing media thickness |
135 - 254 µm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Print technology |
|---|
| Type |
POS printer |
| Print technology |
Thermal transfer |
| Print speed |
356 mm/sec |
| Print quality |
|---|
| Maximum resolution |
300 x 300 DPI |
| Technical details |
|---|
| Product colour |
Black |
| Built-in barcodes |
Code 93, QR Code, Code 11, EAN128, MaxiCode, Code 128 (A/B/C), UPC-A, PDF417, UPC-E |
| Features |
|---|
| Internal memory |
512 MB |
| Flash memory |
512 MB |
| Product colour |
Black |
| Built-in barcodes |
Code 93, QR Code, Code 11, EAN128, MaxiCode, Code 128 (A/B/C), UPC-A, PDF417, UPC-E |
| Storage media |
Flash |
| Design |
|---|
| Product colour |
Black |
| Built-in display |
Yes |
| Display |
|---|
| Built-in display |
Yes |
| Memory |
|---|
| Internal memory |
512 MB |
| Flash memory |
512 MB |
| Storage media |
Flash |
| Power |
|---|
| AC input voltage |
90 - 264 V |
| AC input frequency |
47 - 63 Hz |
| Power source type |
AC |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 71 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Weight & dimensions |
|---|
| Width |
245 mm |
| Depth |
379 mm |
| Height |
300 mm |
| Weight |
14.7 kg |
