Axis 02315-001 PoE adapter Gigabit Ethernet 1000 V

RJ45, PoE, 80 g, 94 x 35 x 27 mm, Black

Key Features

• Can be wall or DIN-rail mounted; Protects up to 10 kV surge; Supports IEEE 802.3bt up to 95 W; Supports data rates of up to 1 Gbps; Tested with Axis devices

Description

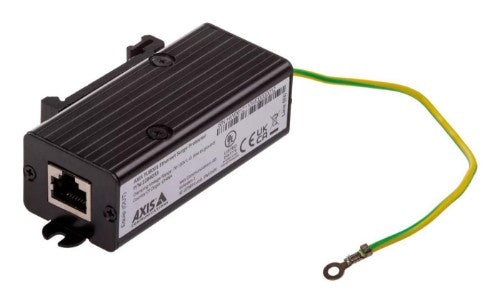

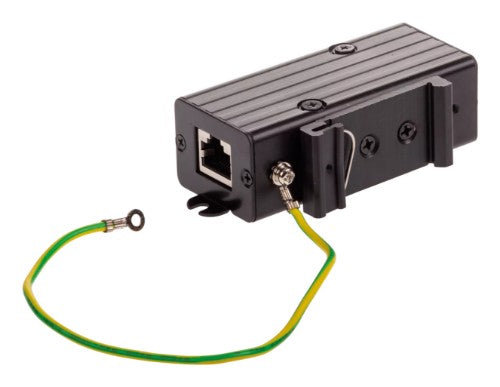

AXIS TU8001 Ethernet Surge Protector helps reduce system downtime, service and maintenance by shielding PoE devices against transient voltage spikes in the Ethernet cable. It is a compact, high-quality product validated to work seamlessly with Axis devices. AXIS TU8001 can be installed close to a PoE switch located indoors or in an outdoor electrical enclosure cabinet adjacent to a network camera or another device. Placing it in an enclosure, you get less exposed wiring, simpler troubleshooting of the whole system and less hardware visible on the pole. The product can be easily mounted on a wall or on a DIN rail.

Specifications

Network
Networking standards	IEEE 802.3bt
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE) voltage	1000 V
Features
Wall mountable	Yes
Surge protection	Yes
Product colour	Black
Networking standards	IEEE 802.3bt
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
RJ-45 input ports	1
Power
Power consumption (max)	95 W
Power over Ethernet (PoE) voltage	1000 V
Input current	2 A
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Weight	80 g
Width	27 mm
Depth	94 mm
Height	35 mm
Technical details
Power over Ethernet (PoE)	Yes
Input current	2 A
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Harmonized System (HS) code	85044095
Logistics data
Harmonized System (HS) code	85044095
