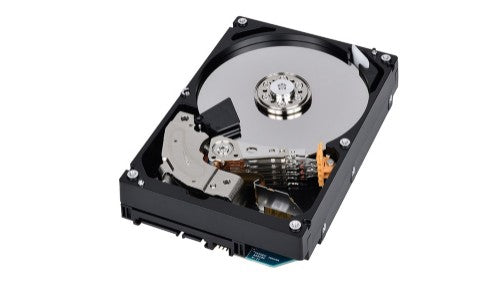

8 TB, SATA 3.3, 3.5", 7200 rpm, 101.85x26.1x147 mm
Key Features
- Industry Standard 3.5-inch 26.1mm Height Form Factor
- Up to 8TB(SATA or SAS)
- 7200rpm Performance
- Choice of SATA 6Gbit/s or Dual-Port SAS 12Gbit/s Interface
- 550 Total TB Transferred per Year Workload Rating
- Choice of 512n or 512e (Advanced Format) Sector Technology
- Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) Option Models Available
Description
The Enterprise Capacity 7200rpm HDD models offer up to 8TB(SATA/SAS), a choice of interface (SATA - MG08ADA Series, and SAS - MG08SDA Series), as well as a choice of 512 Native(512n) sector or 512 emulation(512e) sector technologies. All models utilize a power-efficient mechanical design incorporating the latest advancements in HDD technology. MG08-D Series models are designed to provide plug-and-play robustness using the industry standard 3.5-inch form factor. Model options supporting Sanitize Instant Erase (SIE) and Self-Encrypting Drive(SED) are also available.
Specifications
| Hard drive |
|---|
| Component for |
PC |
| HDD sustained transfer rate |
248 MiB/s |
| HDD interface transfer rate |
6 Gbit/s |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
8 TB |
| Features |
|---|
| Type |
HDD |
| Component for |
PC |
| HDD sustained transfer rate |
248 MiB/s |
| HDD interface transfer rate |
6 Gbit/s |
| Interface |
Serial ATA III |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| HDD capacity |
8 TB |
| Storage drive buffer size |
256 MB |
| Mean time to failure (MTTF) |
2000000 h |
| Power |
|---|
| Power consumption (typical) |
5.61 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 55 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
-305 - 3048 m |
| Non-operating altitude |
-305 - 12192 m |
| Operating vibration |
0.72 G |
| Operating shock |
70 G |
| Non-operating vibration |
3 G |
| Non-operating shock |
250 G |
| Technical details |
|---|
| Harmonized System (HS) code |
84717050 |
| Interface |
Serial ATA III |
| Weight & dimensions |
|---|
| Width |
101.8 mm |
| Weight |
700 g |
| Height |
147 mm |
| Depth |
26.1 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717050 |
| Other features |
|---|
| Interface |
Serial ATA III |
