TQ1601-E Conduit Back Box
Key Features
- Aluminum; Coating in corrosion resilient material; Compatible with AXIS ACI Adapters ¾’’; Conduit entries for ease of installation; Designed to dissipate vibrations
Description

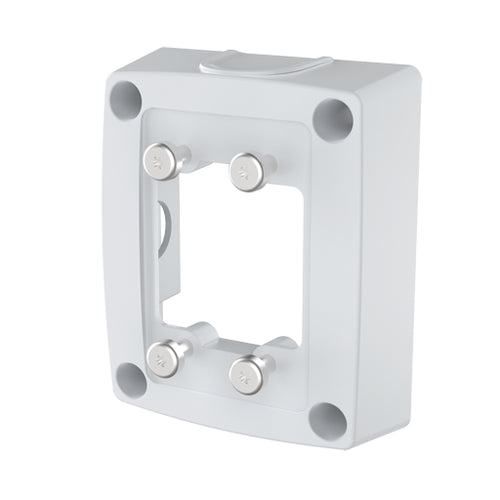

AXIS TQ1601-E Conduit Back Box is an aluminum mount with a coating that alleviates corrosion. Its design with long screws and a washer helps dissipate vibrations, and the top/bottom and side conduit entries make installation easier. When used together with AXIS T94Q01A Wall Mount, the Ethernet cable can be routed through or along the wall (from left or right). The side and top/bottom-holes are compatible with 3/4" conduits, M25 cable protection products and with AXIS Conduit Interface (ACI) adapter range (NPS/U-shape). AXIS TQ1601-E can also be used to cover a single gang junction box.
Specifications
| Features |
|---|
| Housing material |
Aluminium |
| Brand compatibility |
Axis |
| Compatibility |
T94Q01A
T92E
T93F
P13-E
Q16-E
T92G20
T91E61 |
| Type |
Cable box |
| Placement supported |
Universal |
| Product colour |
White |
| International Protection (IP) code |
IP66 |
| Wall mountable |
Yes |
| Connecting thread |
3/4" |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| Connecting thread |
3/4" |
| Technical details |
|---|
| Compatibility |
T94Q01A
T92E
T93F
P13-E
Q16-E
T92G20
T91E61 |
| Type |
Cable box |
| Placement supported |
Universal |
| International Protection (IP) code |
IP66 |
| Doesn't contain |
PVC |
| Harmonized System (HS) code |
85299020 |
| Weight & dimensions |
|---|
| Width |
130 mm |
| Weight |
540 g |
| Height |
158 mm |
| Depth |
50 mm |
| Colour |
|---|
| Product colour |
White |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299020 |
