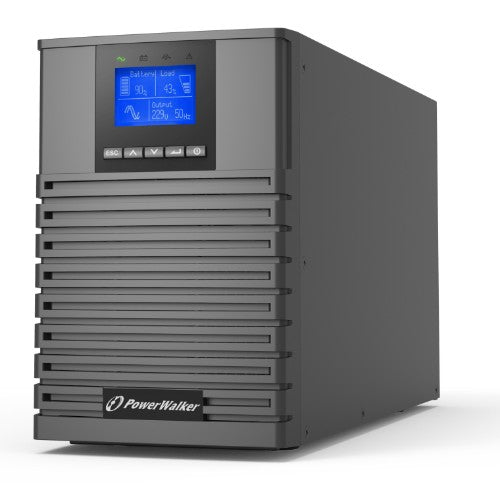

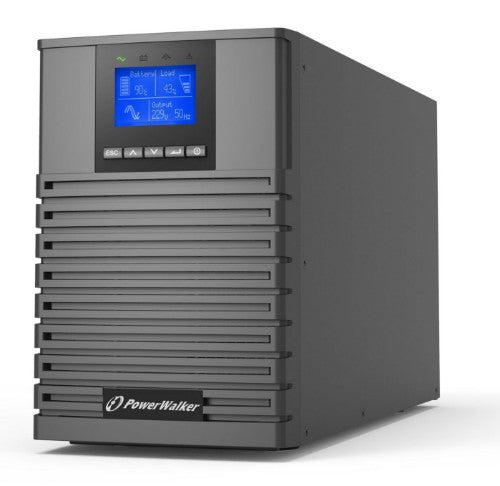

PowerWalker VFI 1500 ICT IoT Double-conversion (Online) 1.5 kVA 1500 W 4 AC outlet(s)

Online, 1500VA / 1500W, 4 x C13 Out, USB, RS-232, LCD

Key Features

• IOT Solution with Cloud Integration and WinPower App
• Communication via LAN cable or WLAN Modem
• Online technology with Power Factor 1.0
• Hot-swappable batteries, allows battery replacement without power interruption
• Multifunction LCD display with auto dimming screen

Description

PowerWalker VFI 1000-3000 ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis. This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS. Stay up to date everywhere and anytime.

Specifications

Power
Output voltage regulation	1%
Output power factor	1
Input power factor	0.99
Output power	1500 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	1%
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	1.5 kVA
Efficiency (On-line mode)	89%
Charging current	1.5 A
ECO mode	Yes
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Number of output phases	1
Number of input phases	1
LED indicators	Yes
Power protection features	Overload
Noise level	45 dB
Features
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Output voltage regulation	1%
Number of output phases	1
Number of input phases	1
Output power factor	1
Input power factor	0.99
Output power	1500 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
Power protection features	Overload
Output voltage Total Harmonic Distortion (THD)	1%
Noise level	45 dB
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	1.5 kVA
Efficiency (On-line mode)	89%
ECO mode	Yes
Input frequency	40/70 Hz
Charging current	1.5 A
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Battery
Number of batteries supported	3
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	3 h
Charging current	1.5 A
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Cooling type	Active
Built-in fan	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	85078000
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Package width	495 mm
Package depth	240 mm
Package height	339 mm
Weight	14.3 kg
Width	145 mm
Package weight	15.7 kg
Height	220 mm
Depth	404 mm
Packaging data
Package width	495 mm
Package depth	240 mm
Package height	339 mm
Package weight	15.7 kg
