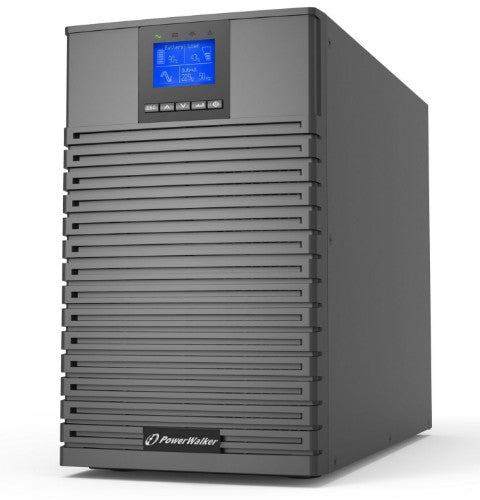

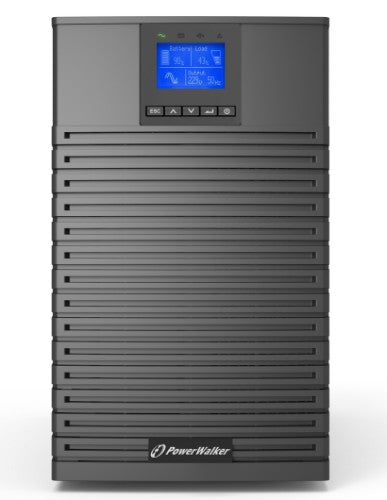

PowerWalker VFI 3000 ICT IoT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 9 AC outlet(s)

Online, 3000VA / 3000W, 8 x C13 & 1 x C19 Out, USB, RS-232, LCD

Key Features

• IOT Solution with Cloud Integration and WinPower App
• Communication via LAN cable or WLAN Modem
• Online technology with Power Factor 1.0
• Hot-swappable batteries, allows battery replacement without power interruption
• Multifunction LCD display with auto dimming screen

Description

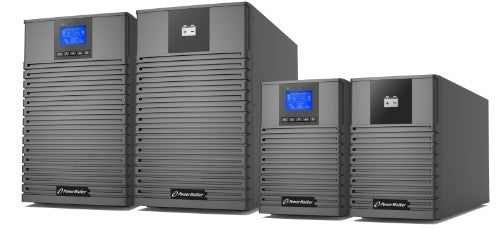

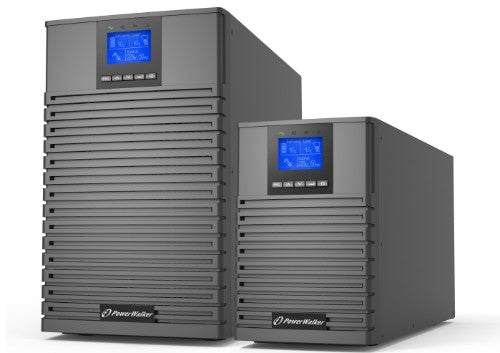

PowerWalker VFI 1000-3000 ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.

This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.

Stay up to date everywhere and anytime.

Specifications

Power
Output voltage regulation	1%
Output power factor	1
Input power factor	0.99
Output power	3000 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	1%
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	3 kVA
Charging current	1.5 A
ECO mode	Yes
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
LED indicators	Yes
Power protection features	Overload
Noise level	50 dB
Features
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Output voltage regulation	1%
Output power factor	1
Input power factor	0.99
Output power	3000 W
Input operation voltage (min)	160 V
Input operation voltage (max)	300 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
Power protection features	Overload
Output voltage Total Harmonic Distortion (THD)	1%
Noise level	50 dB
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	3 kVA
ECO mode	Yes
Input frequency	40/70 Hz
Charging current	1.5 A

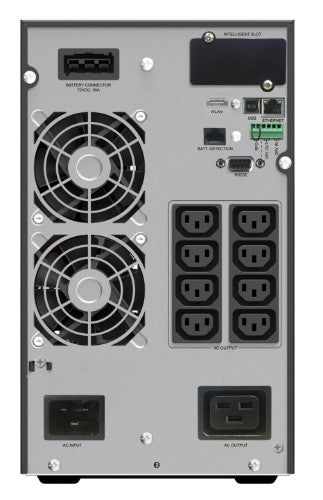

Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Serial ports quantity	1
Battery
Number of batteries supported	6
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	3 h
Charging current	1.5 A
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Cooling type	Active
Built-in fan	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	85078000
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Package width	590 mm
Package depth	330 mm
Package height	475 mm
Weight	26.4 kg
Width	192 mm
Package weight	28.9 kg
Height	318 mm
Depth	428 mm
Packaging data
Cables included	Input power cable, Output power cable, USB cable
Manual	Yes
Package width	590 mm
Package depth	330 mm
Package height	475 mm
Package weight	28.9 kg
Packaging content
Cables included	Input power cable, Output power cable, USB cable
Manual	Yes
