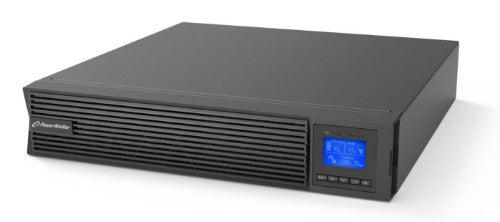

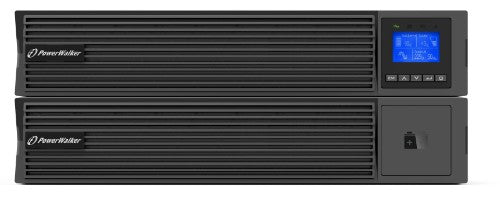

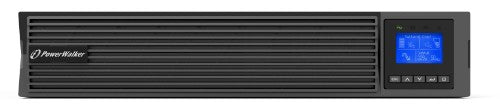

Online, 1500VA / 1500W, 8 x C13 Out, USB, RS-232, LCD
Key Features
- IOT Solution with Cloud Integration and WinPower App
- Communication via LAN cable or WLAN Modem
- Online technology with Power Factor 1.0
- Hot-swappable batteries, allows battery replacement without power interruption
- Multifunction LCD display with auto dimming screen
Description
PowerWalker VFI 1000-3000 ICT/ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly – regardless of time and place. This cloud-based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.
This UPS series utilizes double conversion technology and features unity power factor, ensuring the availability of your mission-critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.
Stay up to date everywhere and anytime.
Specifications
| Power |
|---|
| Output voltage regulation |
1% |
| Output power factor |
1 |
| Output power |
1500 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
89% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
1% |
| Input current Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Output power capacity |
1.5 kVA |
| Charging current |
1.5 A |
| ECO mode |
Yes |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| LED indicators |
Yes |
| Noise level |
45 dB |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output voltage regulation |
1% |
| Output power factor |
1 |
| Output power |
1500 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
89% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
1% |
| Noise level |
45 dB |
| Input current Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Output power capacity |
1.5 kVA |
| ECO mode |
Yes |
| Input frequency |
40/70 Hz |
| Charging current |
1.5 A |
| Ports & interfaces |
|---|
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Battery |
|---|
| Number of batteries supported |
3 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Charging current |
1.5 A |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| LED indicators |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Package width |
498 mm |
| Package depth |
587 mm |
| Package height |
240 mm |
| Weight |
15.8 kg |
| Width |
438 mm |
| Package weight |
19 kg |
| Height |
85.5 mm |
| Depth |
445 mm |
| Packaging data |
|---|
| Cables included |
Input power cable, Output power cable, USB cable |
| Manual |
Yes |
| Package width |
498 mm |
| Package depth |
587 mm |
| Package height |
240 mm |
| Package weight |
19 kg |
| Packaging content |
|---|
| Cables included |
Input power cable, Output power cable, USB cable |
| Manual |
Yes |
