Description
AX6000 Tri-Band PoE Multi-Gig WiFi 6 Access Point
REMOTE CLOUD MANAGEMENT
Plug-and-play set up and remote management of small business networks
NETWORK TOPOLOGY
A single, holistic view of wired and wireless networks for further troubleshooting
HIGH-DENSITY WIFI MANAGEMENT
Deep wireless management features with more tools to deploy small and large WiFi networks
Business-Level Security
WPA3 for the highest level of WiFi connection security
8 Wireless Networks (SSIDs)
Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageability
Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
NETGEAR INSIGHT FOR VARS
Multi-location & multi-tenant remote network management from a single pane-of-glass
Easy Setup
Set up, configure, and manage with NETGEAR Insight
Remote Management
Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription included

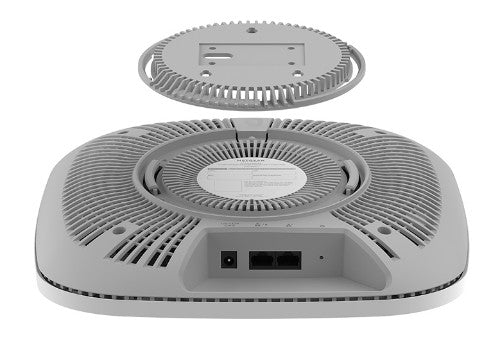

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included
Description
Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for small and medium sized business.REMOTE CLOUD MANAGEMENT
Plug-and-play set up and remote management of small business networks
NETWORK TOPOLOGY
A single, holistic view of wired and wireless networks for further troubleshooting
HIGH-DENSITY WIFI MANAGEMENT
Deep wireless management features with more tools to deploy small and large WiFi networks
Business-Level Security
WPA3 for the highest level of WiFi connection security
8 Wireless Networks (SSIDs)
Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageability
Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
NETGEAR INSIGHT FOR VARS
Multi-location & multi-tenant remote network management from a single pane-of-glass
Easy Setup
Set up, configure, and manage with NETGEAR Insight
Remote Management
Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription included
Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Auto MDI/MDI-X | Yes |
| Reset button | Yes |
| Spread spectrum method | OFDM, OFDMA |
| Number of users | 200 user(s) |
| Web-based management | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at |
| Modulation | OFDM |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Modulation | OFDM |
| Network | |
| Spread spectrum method | OFDM, OFDMA |
| Number of users | 200 user(s) |
| Networking standards | IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at |
| Management features | |
| VLAN support | Yes |
| Web-based management | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | OFDM, OFDMA |
| Number of users | 200 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at |
| Modulation | OFDM |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Security | |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |

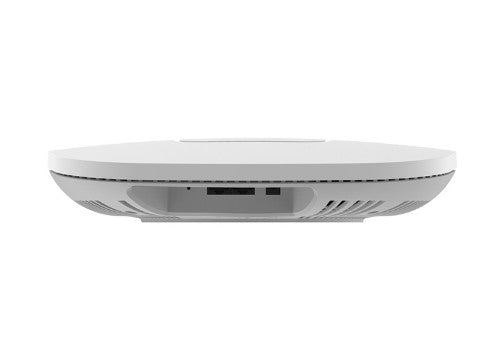

| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Output voltage | 12 V |
| Output current | 3.5 A |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.3 dBi |
| Technical details | |
| Reset button | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 266.6 mm |
| Depth | 268.3 mm |
| Weight | 956 g |
| Height | 55.5 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
