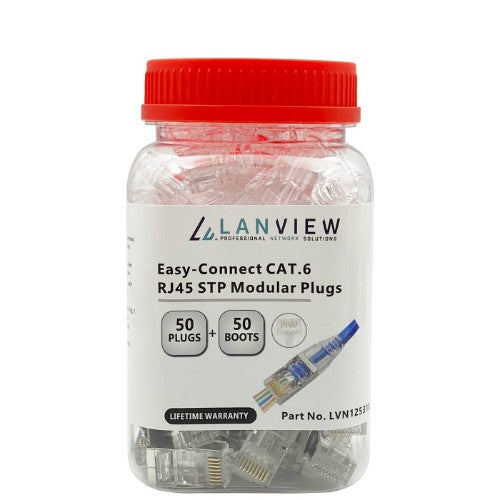

RJ45 STP plug Cat6 for AWG23-24 stranded/solid conductor
Key Features
- Inner Wire Diameter Range = 1.05~1.1MM
- Diameter Range for Cable = 5.5~6.3MM
- Easy-Connect
- 50 pcs in the Box
Description

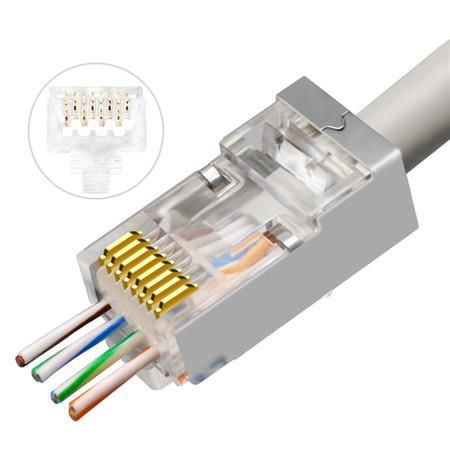

RJ45 plug used for mounting on stranded/solid cable. New terminating principle (easy connect) simplifies the terminating by allowing the conductors to be pulled through the front of the connector. The performance is optimized by the reduction of distance between pair twist and contact pins.
Specifications
| Features |
|---|
| Cable standard |
Cat6 |
| Cable shielding |
S/UTP (STP) |
| Connector(s) |
RJ45 |
| Product colour |
Transparent |
| AWG wire size |
23/24 |
| Connector gender |
Male |
| Connector form factor |
Straight |
| Weight & dimensions |
|---|
| Width |
11.6 mm |
| Weight |
198 g |
| Height |
6 mm |
| Depth |
21 mm |
| Technical details |
|---|
| Cable standard |
Cat6 |
| Cable shielding |
S/UTP (STP) |
| Package width |
65 mm |
| Package height |
150 mm |
| Connector(s) |
RJ45 |
| Colour |
|---|
| Product colour |
Transparent |
| Packaging data |
|---|
| Package weight |
210 g |
| Package depth |
150 mm |
| Package type |
Plastic jar |
| Package width |
65 mm |
| Package height |
150 mm |
| Packaging content |
|---|
| Quantity per pack |
50 pc(s) |
