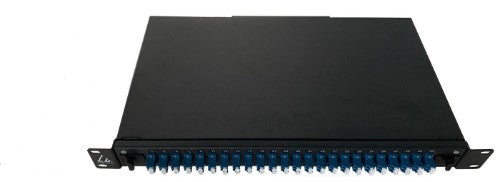

Lanview LVO233845 patch panel 1U

24-Port Fibre patch panel mounted with 24 x LC duplex Single Mode connectors

Key Features

• Slide-out design
• 24 x LC SM BLue Zirconia adapters included
• 2 x 24 port splice cassettes included
• 48 x steel splice included
• Compliance SC Simplex/LC Duplex
• Cable management cutouts for securing the cables
• inclusive adator, pigtails, casette

Description

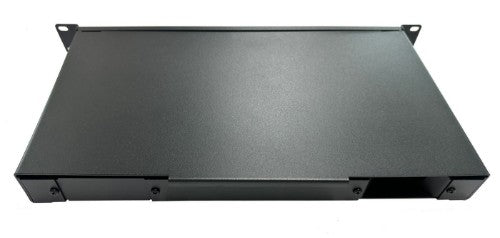

19'' Fibre patch panel for up to 24 SC Simplex or LC Duplex adapters. The panel back side features 4 Ø20 mm inlets suitable for PG screw connection and 2 rectangular inlets 80 x 34 mm with blank plates.

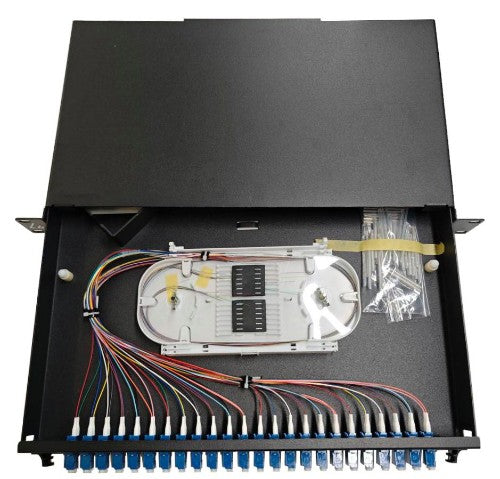

Mounted with 24 x LC Duplex Single Mode adapters. 48 pigtails pre-mounted in splice cassettes.

Rubber coated strain relief suitable for blown-fibre.

The patch panel have fixtures for splice cassettes and cable management cutouts for securing the cables with cable ties or velcro straps to relieve cable stress.

Specifications

Network
Duplex	Yes
Ports quantity	24
Connector(s)	24 x LC
Single-mode fiber (SMF) supported	Yes
Fiber ports quantity	24
Fiber optic connector	LC
Design
Mounting	Rack mounting
Rack capacity	1U
Cable management	Yes
Material	Steel
Product colour	Black
Weight & dimensions
Width	420 mm
Weight	3.5 kg
Height	245 mm
Depth	36 mm
Package weight	3.6 kg
Packaging data
Package weight	3.6 kg
Features
Mounting	Rack mounting
Rack capacity	1U
Material	Steel
Product colour	Black
Technical details
Mounting	Rack mounting
Material	Steel
Harmonized System (HS) code	85371098
Colour
Product colour	Black
Logistics data
Harmonized System (HS) code	85371098
