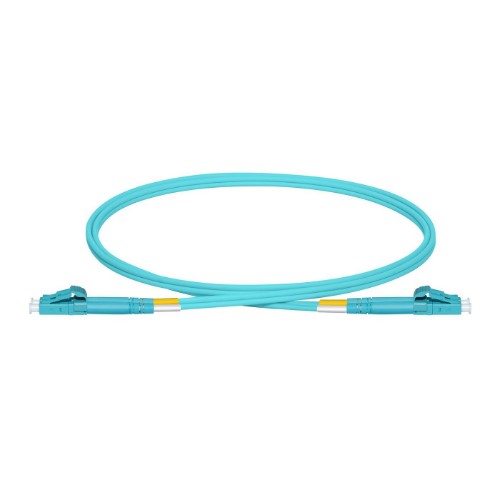

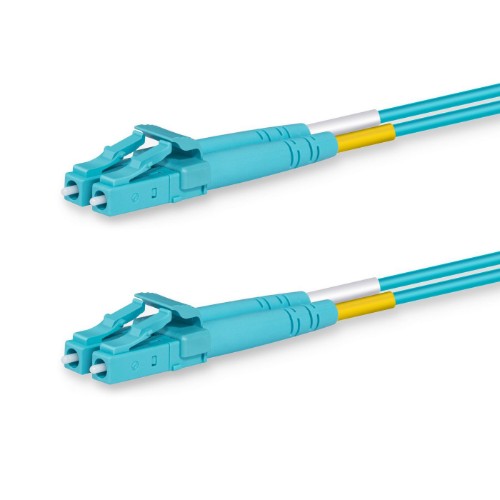

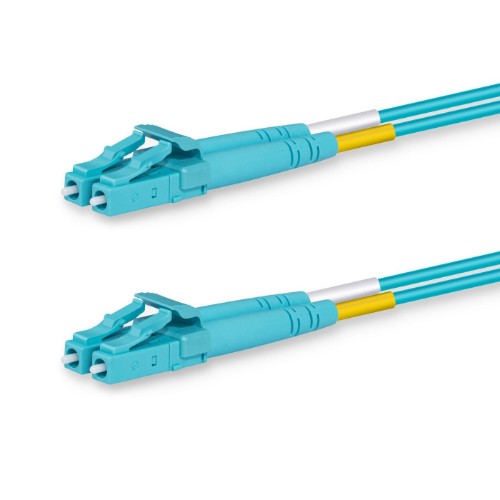

LC-LC Multimode fibre cable duplex 2m OM3 50/125 LSZH
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Length: 2 meter
- Color: Aqua
- Pre tested with test report
Description
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
2x LC |
| Connector 2 |
2x LC |
| Cable length |
2 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Connector(s) |
LC - LC |
| Doesn't contain |
Halogen |
| Features |
|---|
| Fibre optic type |
OM3 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
2x LC |
| Connector 2 |
2x LC |
| Cable length |
2 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Certification |
IEC, EIA TIA, Telcordia |
| Ethernet interface type |
10 Gigabit Ethernet |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Aqua colour |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certificates |
|---|
| Certification |
IEC, EIA TIA, Telcordia |
| Weight & dimensions |
|---|
| Cable length |
2 m |
| Package width |
180 mm |
| Package depth |
60 mm |
| Package height |
150 mm |
| Cable diameter |
2 mm |
| Weight |
33 g |
| Package weight |
35 g |
| Packaging data |
|---|
| Package width |
180 mm |
| Package depth |
60 mm |
| Package height |
150 mm |
| Package weight |
35 g |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Connector(s) |
LC - LC |
