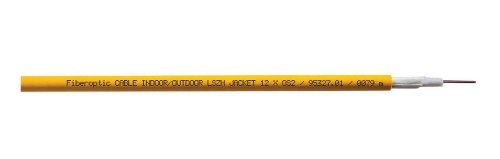

Fibre cable 12 x 9/125 OS2 LSZH indoor/outdoor
Key Features
- Number of fibers: 12
- Fibre size: 9μm
- Color: Yellow
- Usage: Indoor/Outdoor
Description
Mainly used in data installations as backbone cabling or by long distances where large bandwidth is desired. This cable is suitable for indoor and outdoor installations. For outdoor installations conduit have to be used
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Connector 1 |
No |
| Connector 2 |
No |
| Cable length |
100 m |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Tube diameter |
2.8 mm |
| Number of optical fibres |
12 |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Features |
|---|
| Compressive strength |
1500 |
| Bending radius |
6 cm |
| Fibre optic type |
OS2 |
| Connector gender |
No |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Connector 1 |
No |
| Connector 2 |
No |
| Cable length |
100 m |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Certification |
ISO 11801 (2nd), EN 50173-1:2002, IEC 60794-1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2, IEC 50290-2-27 |
| Country of origin |
Spain |
| Wavelengths supported |
1310 nm |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Yellow |
| Connector 2 gender |
No |
| Connector 1 gender |
No |
| Connector polish type |
PC |
| Certificates |
|---|
| Certification |
ISO 11801 (2nd), EN 50173-1:2002, IEC 60794-1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2, IEC 50290-2-27 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Cable weight |
40 kg/km |
| Bending radius |
6 cm |
| Cable length |
100 m |
| Cable diameter |
6 mm |
| Weight |
3.9 kg |
| Package weight |
4 kg |
| Packaging data |
|---|
| Package weight |
4 kg |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Tube diameter |
2.8 mm |
| Number of optical fibres |
12 |
