Description

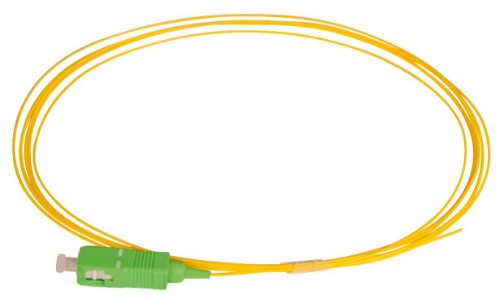

SC/APC Pigtail Singlemode 2m OS2 9/125 PVC EASY STRIP
Key Features
- Designed for Data Centers, Industry and Computer Centers
- Length: 2 meter
Description
Used for splicing fibre optical cables. Comes with ceramic zirconia ferrule. Used in telecommunication and data communication installations in high speed network.Specifications
| Technical details | |
|---|---|
| Jacket material | Polyvinyl chloride (PVC) |
| Fiber mode structure | Single-mode |
| Connector 1 | SC |
| Connector 2 | No |
| Cable length | 2 m |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Connector(s) | SC |
| Insertion loss | 0.3 dB |
| Compliance certificates | RoHS |
| Features | |
| Fibre optic type | OS2 |
| Return loss | 50 dB |
| Jacket material | Polyvinyl chloride (PVC) |
| Fiber mode structure | Single-mode |
| Connector 1 | SC |
| Connector 2 | No |
| Cable length | 2 m |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Insertion loss | 0.3 dB |
| Certification | ISO 9001, UL, GR-326-Core, IEC 61755, IEC61300 |
| Harmonized System (HS) code | 85447000 |
| Product colour | Yellow |
| Connector 2 gender | No |
| Connector 1 gender | Male |
| Connector polish type | APC |
| Certificates | |
| Certification | ISO 9001, UL, GR-326-Core, IEC 61755, IEC61300 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable length | 2 m |
| Package width | 150 mm |
| Package depth | 60 mm |
| Package height | 150 mm |
| Cable diameter | 0.9 mm |
| Weight | 9.4 g |
| Package weight | 10 g |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 60 mm |
| Package height | 150 mm |
| Package weight | 10 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Connector(s) | SC |
