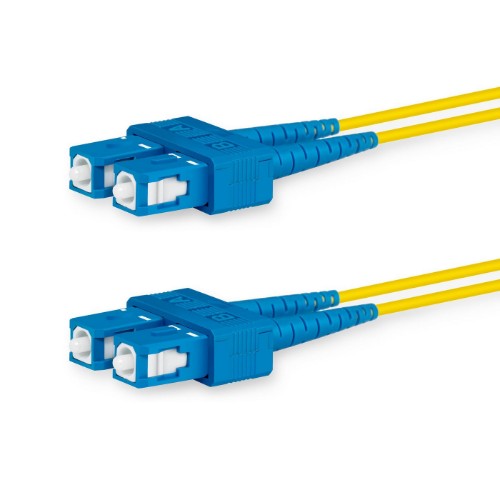

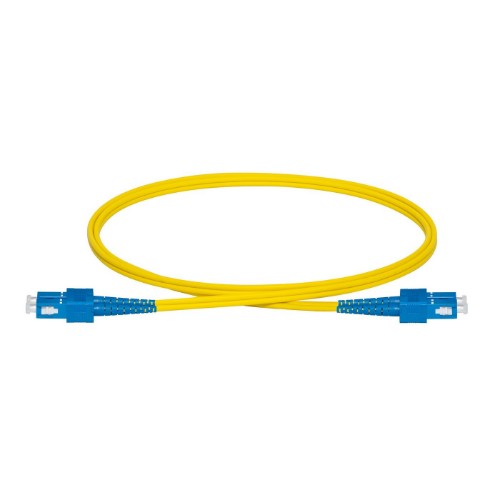

SC-SC Singlemode fibre cable duplex 2m OS2 9/125 LSZH
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Length: 2 meter.
- Color: Yellow
- Pre tested with test report
Description
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
2x SC |
| Connector 2 |
2x SC |
| Cable length |
2 m |
| Full duplex |
Yes |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Connector(s) |
SC - SC |
| Doesn't contain |
Halogen |
| Features |
|---|
| Fibre optic type |
OS2 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
2x SC |
| Connector 2 |
2x SC |
| Cable length |
2 m |
| Full duplex |
Yes |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Certification |
IEC, EIA, TIA, Telcordia |
| Ethernet interface type |
40 Gigabit Ethernet |
| Wavelengths supported |
1550 nm |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Yellow |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certificates |
|---|
| Certification |
IEC, EIA, TIA, Telcordia |
| Weight & dimensions |
|---|
| Cable length |
2 m |
| Package width |
180 mm |
| Package depth |
60 mm |
| Package height |
200 mm |
| Cable diameter |
2 mm |
| Weight |
32 g |
| Package weight |
33 g |
| Packaging data |
|---|
| Package width |
180 mm |
| Package depth |
60 mm |
| Package height |
200 mm |
| Package weight |
33 g |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Connector(s) |
SC - SC |
