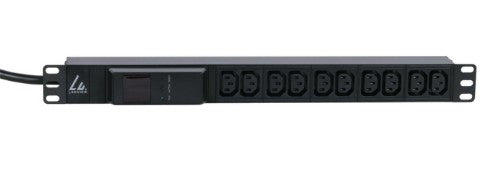

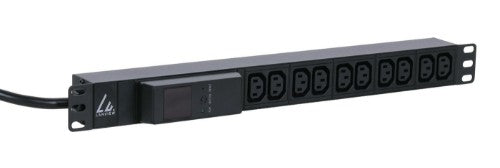

19'' rack mount power strip, 3m, 16A with 10 x C13 socket and AMP meter
Key Features
- 3m power cord and IEC 60309 CEE 16A plug (Commando plug) C13 outlets
- Measure power consumption at the outlet level
- build in power indicator Lighted master switch
- Low-weight aluminum chassis for easy installation
- frontal installation
Description

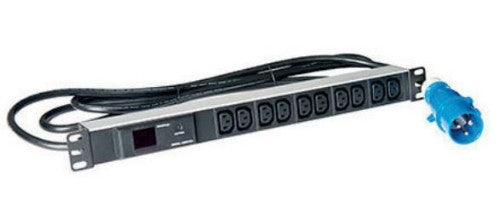

This Power socket consist of 10 x C13 outlets with AMP meter and a 3 meter power cord and Commando plug IEC 60309 CEE 16A Plug, ready to mount in a 1u rack cabinet.
Specifications
| Design |
|---|
| Type |
Single-phase |
| PDU types |
Metered |
| Mounting |
Horizontal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Ports & interfaces |
|---|
| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
IEC 60309 |
| Features |
|---|
| Cable length |
3 m |
| LED indicators |
Yes |
| Metering |
AMP |
| Management features |
|---|
| Monitoring |
Current |
| Ergonomics |
|---|
| Cable length |
3 m |
| LED indicators |
Yes |
| Power |
|---|
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Maximum current |
16 A |
| Weight & dimensions |
|---|
| Weight |
1.3 kg |
| Size (imperial) |
48.3 cm (19") |
| Width |
482.5 mm |
| Depth |
44.4 mm |
| Height |
44.4 mm |
| Package weight |
1.5 kg |
| Packaging data |
|---|
| Package weight |
1.5 kg |
