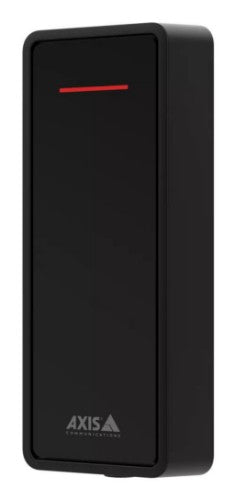

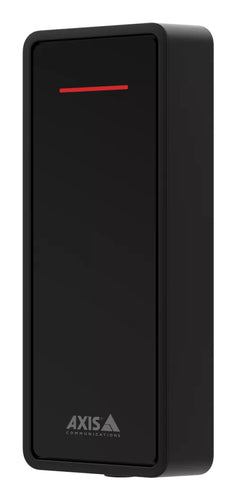

Axis 02144-001 RFID reader RS-485 Black

13.56 Mhz, IP65, IK10, Black

Key Features

• Designed to perfectly match Axis door controllers and credentials; EAL6+ Certified Secure Element for added protection; IP65, IK07 ratings for use in harsh environments; Mullion-mount design for easy installation; Support for most RFID cards with 13.56MHz

Description

Designed to perfectly match Axis network door controllers and Axis credentials, AXIS A4020-E Reader offers secure and seamless touch-free entry. Ideal for use in harsh environments both indoors and outdoors, it features a mullion-mount design to fit perfectly in narrow spaces and door frame installations. It supports most types of smart RFID card standards with 13.56MHz credential technologies and includes out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication. Packed with built-in cybersecurity features, it helps prevent unauthorized access and safeguards your system. Furthermore, this smart reader supports Secure Channel Protocol (SCP) enabling secure communications and connections.

Specifications

Technical details
Interface	RS-485
Frequency	13.56 kHz
LED indicators	Yes
Product colour	Black
Housing material	Plastic
Certification	EN 61000–6–1, EN 61000–6–3, FCC Part 15 Subpart B Class B, EN 300330, EN 301489-1, EN 301489-3, EN 62311, CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP65, IEC/EN 62262 IK07, NEMA 250 Type 4X
International Protection (IP) code	IP65
Harmonized System (HS) code	84719000
Logistics data
Harmonized System (HS) code	84719000
Weight & dimensions
Width	48 mm
Depth	27 mm
Height	121 mm
Weight	118 g
Operational conditions
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95%
