Panorama Antennas DMM-7-38-2TS9 network antenna Omni-directional antenna TS-9 4 dBi

698-960/1710-3800MHz, 4 dBi, TS-9, 2m

Description

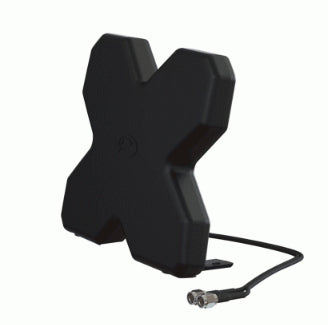

Use the DMM-7-38 to ensure a strong 4G or 3.6GHz 5G connection and fast transfer speeds for your modem or router. It's unique 'X' design enables MiMo connectivity across a huge frequency range and with the options of desk or window mounting the antenna is ideal for use on the move.

This multiband portable antenna is designed to be compact and easy to use. It has feet which allow it to be used freestanding, a suction cup for window mounting, and clips for attachment to a laptop. The is a versatile and compact travel companion to ensure you have excellent signal in all situations.

Specifications

Performance
Antenna gain level (max)	4 dBi
Frequency band	0.698-0.96/1.71-3.8 GHz
Impedance	50 Ω
Features
Housing material	Acrylonitrile butadiene styrene (ABS)
Antenna type	Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)	<2.5:1
Product colour	Black
Cable length	2 m
Antenna connector type	TS-9
Antenna gain level (max)	4 dBi
Frequency band	0.698-0.96/1.71-3.8 GHz
Impedance	50 Ω
Power
Power consumption (max)	20 W
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Weight & dimensions
Weight	250 g
Width	151 mm
Height	137 mm
Technical details
Antenna gain level (max)	4 dBi
Frequency band	0.698-0.96/1.71-3.8 GHz
Antenna type	Omni-directional antenna
Voltage Standing Wave Ratio (VSWR)	<2.5:1
Impedance	50 Ω
Cable length	2 m
Antenna connector type	TS-9
Colour
Product colour	Black
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
