Description
Key Features
- Logitech extended guarantee adds one year to the original manufacturer's guarantee which provides that your Logitech Rally Bar Mini hardware shall be free from defects in material and workmanship.
- The purchase of a one year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer's two year limited hardware guarantee.
- Logitech one year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
- The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value, and ensure optimal performance of your Logitech conference room hardware.
- A three year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.
Description
Compact Design, Powerful Performance

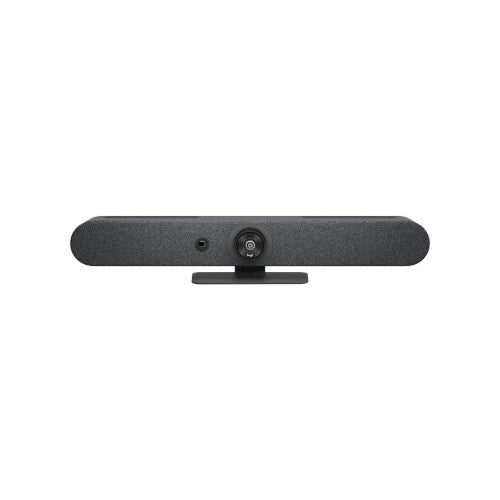

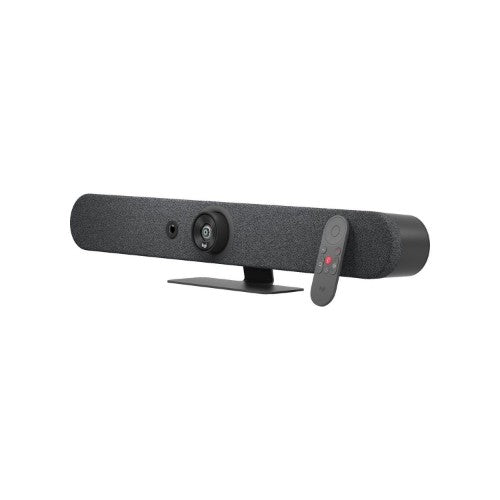

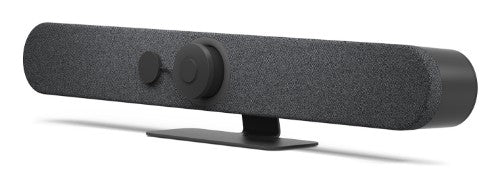

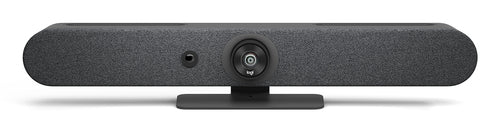

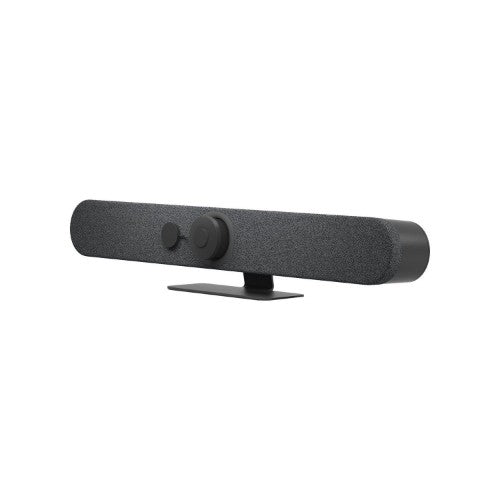

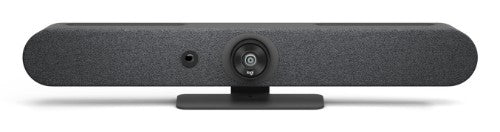

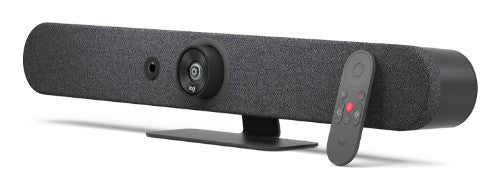

The Logitech Rally Bar Mini is the perfect all-in-one video conferencing solution designed for small rooms and huddle spaces. Despite its compact form factor, it delivers a premium audio-visual experience, making every meeting feel professional and productive. Its sleek, modern aesthetic blends effortlessly into any workspace.
Crisp, Cinema-Quality Video
Experience ultra-HD video quality with the Rally Bar Mini’s 4K camera and AI-powered RightSight™ auto-framing technology. The camera intelligently adjusts to keep participants perfectly centered and in focus, creating a natural, face-to-face conversation experience even if people move around the room.
Crystal-Clear Audio with RightSound™
Equipped with advanced beamforming microphones and powerful speakers, the Rally Bar Mini ensures every voice is heard clearly and naturally. Logitech’s RightSound™ technology actively levels voices, suppresses background noise, and reduces echoes, so your team can collaborate without distraction.
Plug-and-Play Simplicity or Flexible Deployment
Whether you want a standalone appliance mode or connect via USB to a PC or Mac, the Rally Bar Mini adapts to your setup. Certified for platforms like Zoom, Microsoft Teams, and Google Meet, it’s easy to deploy and manage across different conferencing environments.
AI-Powered Insights and Remote Management
Logitech Sync makes managing multiple Rally Bar Minis simple with centralized monitoring, software updates, and diagnostics. Built-in AI provides real-time data to improve meeting experiences and room utilization, helping IT teams stay ahead of the curve.
Sustainable and Built to Last
Built with a commitment to sustainability, the Rally Bar Mini includes post-consumer recycled plastic and eco-conscious packaging. It's engineered for longevity and reliability, ensuring your investment supports a greener future while maintaining top-tier performance.
Specifications
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Tilt angle range | -15 - 15° |
| Pan range | -25 - 25° |
| Product colour | Graphite |
| PTZ control | Yes |
| Technical details | |
| Product type | Group video conferencing system |
| Tilt angle range | -15 - 15° |
| Pan range | -25 - 25° |
| Product colour | Graphite |
| PTZ control | Yes |
| Harmonized System (HS) code | 85176990 |
| Video | |
| HD type | 4K Ultra HD |
| Digital zoom | 4x |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Audio | |
| Microphone pick-up range | 4.5 m |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| RMS rated power | 8 W |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| Built-in speaker(s) | Yes |
| Sample rates | 0 - 48 kHz |
| Audio beamforming | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| DC-in jack | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 3 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Camera | |
| Horizontal field of view | 113° |
| Remote control interface | Bluetooth |
| Digital zoom | 4x |
| Vertical field of view | 80.7° |
| Diagonal field of view | 120° |
| Zoom capability | Yes |
| Microphone | |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Number of microphones | 6 |
| Sound pressure level (max) | 90 dB |
| Security | |
| Security algorithms | 128-bit AES |
| Battery | |
| Battery capacity | 0.675 Wh |
| Features | |
| Telepresence | No |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case gross weight | 4.73 kg |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 160 mm |
| Harmonized System (HS) code | 85176990 |
| Computer system | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 64 BTU/h |
| Power | |
| DC input voltage | 19 V |
| AC input voltage | 100 - 240 V |
| Current | 4.754 A |
| Power source type | AC |
| Power plug type | Type G |
| Number of batteries supported | 1 |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Weight & dimensions | |
| Width | 719 mm |
| Depth | 101 mm |
| Height | 91.4 mm |
| Weight | 4.03 kg |
| Package width | 191 mm |
| Package depth | 789 mm |
| Package height | 199 mm |
| Package weight | 5.8 kg |
| Packaging content | |
| Remote control included | Yes |
| Packaging content | Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| Batteries included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
