Description
RM750, 750 Watt 80 PLUS Gold Fully Modular ATX PSU (EU)
GOLD-CERTIFIED QUIET POWER
CORSAIR RM Series Fully Modular Ultra-Low Noise Power Supplies with multiple EPS12V connectors deliver consistent 80 PLUS Gold efficient power to your PC and have all the connections needed to power today’s most demanding PC upgrades.
AVAILABLE IN BLACK OR WHITE
Going for a stealthy look or modern minimalism? RM Series PSUs are available in black or white variants to fit your build style.
TUNED FOR LOW NOISE OPERATION

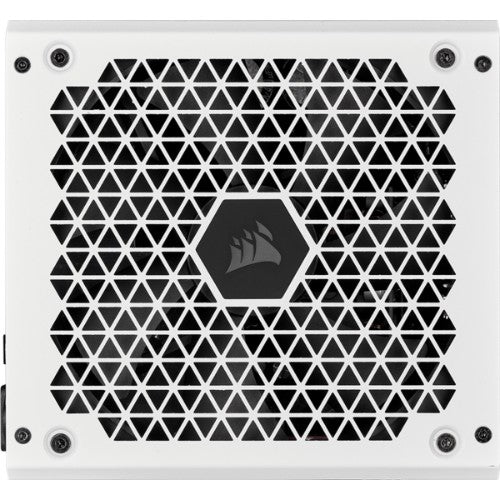

A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
HIGH EFFICIENCY
With upwards of 90% peak efficiency, RM produces less noise and less heat, which means less time worrying and more time gaming.

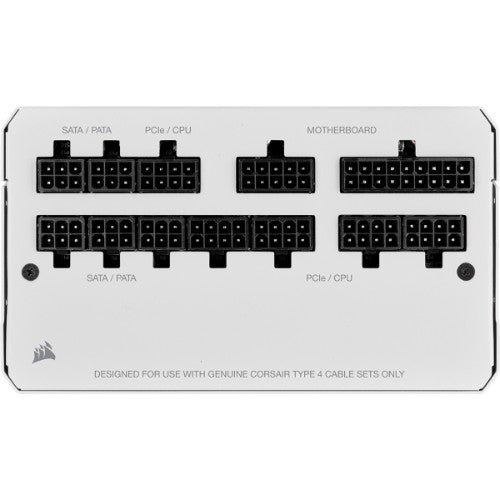

FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS
Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.
Also compatible with the CORSAIR 12-pin GPU power cable for the hottest new GPUs.
ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for near-silent operation. Once the action picks up, the fan activates, ensuring critical component temps stay in check.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105°C rated industrial-grade capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
YOUR BUILD, YOUR WAY
Every fully modular CORSAIR PSU is compatible with a wide range of CORSAIR accessories. From individually sleeved cables in a variety of color combinations to 12-pin micro-fit GPU cables and 12VO motherboard cables, complete your build your way.
Description
CORSAIR RM Series Fully Modular Ultra-Low Noise Power Supplies with triple/dual EPS12V connectors deliver consistent 80 PLUS Gold efficient power to your PC.GOLD-CERTIFIED QUIET POWER
CORSAIR RM Series Fully Modular Ultra-Low Noise Power Supplies with multiple EPS12V connectors deliver consistent 80 PLUS Gold efficient power to your PC and have all the connections needed to power today’s most demanding PC upgrades.
AVAILABLE IN BLACK OR WHITE
Going for a stealthy look or modern minimalism? RM Series PSUs are available in black or white variants to fit your build style.
TUNED FOR LOW NOISE OPERATION
A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
HIGH EFFICIENCY
With upwards of 90% peak efficiency, RM produces less noise and less heat, which means less time worrying and more time gaming.
FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS
Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.
Also compatible with the CORSAIR 12-pin GPU power cable for the hottest new GPUs.
ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for near-silent operation. Once the action picks up, the fan activates, ensuring critical component temps stay in check.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105°C rated industrial-grade capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
YOUR BUILD, YOUR WAY
Every fully modular CORSAIR PSU is compatible with a wide range of CORSAIR accessories. From individually sleeved cables in a variety of color combinations to 12-pin micro-fit GPU cables and 12VO motherboard cables, complete your build your way.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 2.4 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Rifle |
| Harmonized System (HS) code | 84733020 |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | White |
| Fan diameter | 14 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 750,850 mm |
| Peripheral (Molex) power cable length | 750 mm |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 65 cm |
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| Packaging content | |
| Cables included | CPU, PATA, PCIe, SATA |
| Weight & dimensions | |
| Weight | 1.57 kg |
| Packaging data | |
| Cables included | CPU, PATA, PCIe, SATA |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Harmonized System (HS) code | 84733020 |
