Description
cnPilot e410, 2.4 GHz: 2400-2484 MHz 5 GHz: 5150-5850 MHz
Description

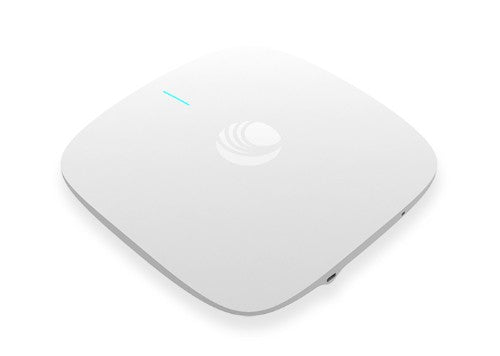

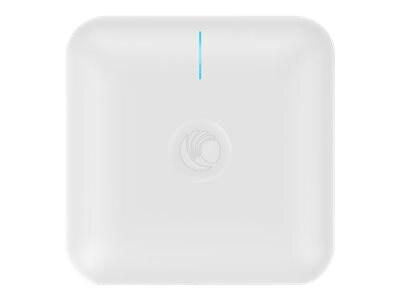

The plenum-rated cnPilot™ e410 with 2×2 MU-MIMO packs a max transmit power of 25 dBm and channels up to 80MHz wide on 5 GHz – offering more flexibility than ever for both coverage and capacity.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af |
| Maximum indoor range | 180 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Maximum indoor range | 180 m |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 802.1x RADIUS, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-TKIP, WPA2-AES |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af |
| Maximum indoor range | 180 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Protocols | |
| DHCP server | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Placement | Table, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Weight | 384 g |
| Height | 42 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
