Description

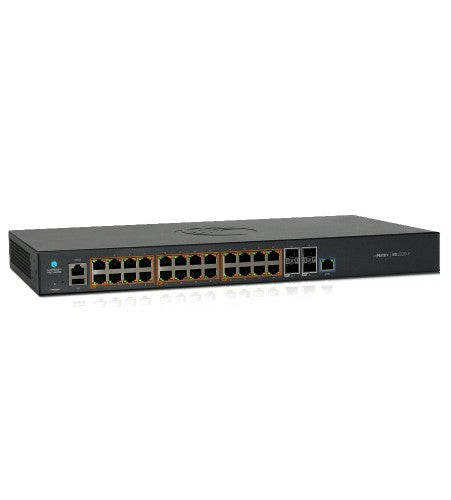

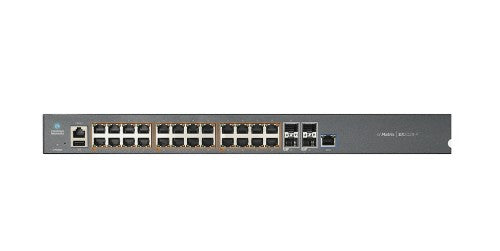

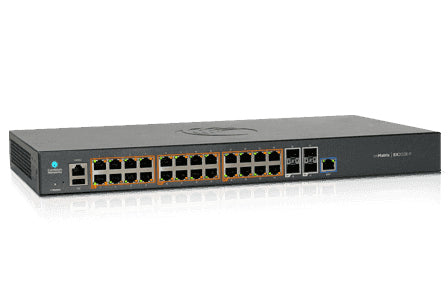

Intelligent Ethernet PoE Switch, 24 x 1 Gbps and 4 SFP+ fiber ports - no power cord
cnMatrix™ EX2028-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028-P.
Key Features
- Full Line Rate, non-blocking architecture
- Easy and simple, free cloud (or on premise) management with cnMaestro™
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
Description
Improve network performance while reducing the time and cost of provisioning and managementcnMatrix™ EX2028-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028-P.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| User operation log | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Installed QSFP+ modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Data transmission | |
| Throughput | 128000 Mpps |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16384 entries |
| Switching capacity | 128 Gbit/s |
| Number of VLANs | 4094 |
| Security | |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | RADIUS |
| IGMP proxy | Yes |
| DHCP features | DHCPv6 snooping |
| Protocols | |
| Management protocols | SNMP v1, v2, and v3, SSH 1.5 and 2.0, RFC 4252: SSH, RFC 4253: SSH,• RFC 4254: SSH, RFC 4251: SSH, RFC 4716: SECSH, RFC 4419, SSL 3.0, RFC 2246, RFC 2818, RFC 3268 |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Link, PoE |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Mean time between failures (MTBF) | 285350 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 230 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | 40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.96 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Mean time between failures (MTBF) | 285350 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Indication | |
| LED indicators | Link, PoE |
