Description

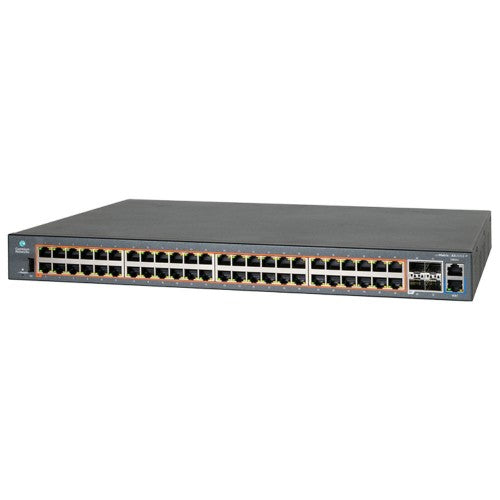

176 Gbps, 48 x RJ-45, 4 SFP+, Flash 128 MB, DRAM 512 MB, CPU 800 MHz, 1U
Key Features
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
Description
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x |
| Number of VLANs | 4000 |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| IGMP proxy | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Throughput | 176 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Number of VLANs | 4000 |
| Security | |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Access Control List (ACL) egress | 128 |
| IGMP proxy | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 393648 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 33.88 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.6 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 393648 h |
| Rack mounting | Yes |
| Memory | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
