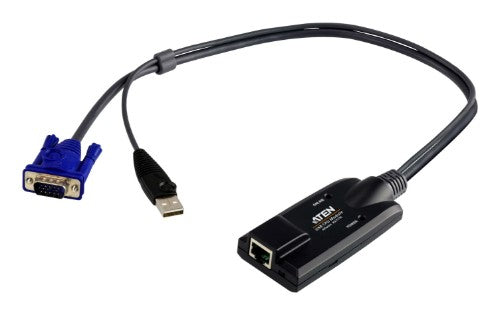

USB - VGA to Cat5e/6 KVM Adapter Cable (CPU Module)
Key Features
- Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
- Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
- Built in ASIC for greater reliability and compatibility
- Hot Pluggable - add or remove computers without having to power down the switch
Description
The KA7170 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it represents the next generation of USB KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.
Specifications
| Performance |
|---|
| Video port type |
VGA |
| Mouse port type |
USB |
| Maximum video resolution |
1920 x 1200 pixels |
| Material |
Plastic |
| Keyboard port type |
USB |
| Console port |
RJ-45 |
| Connector 2 |
1 x USB Type A, 1 x HDB-15 |
| Connector 1 |
1 x RJ-45 |
| Product colour |
Black, Blue, Metallic |
| Connector 1 gender |
Female |
| Connector 2 gender |
Male |
| Packaging data |
|---|
| Weight |
140 g |
| Package width |
42 mm |
| Package height |
129 mm |
| Package depth |
124 mm |
| Package weight |
166 g |
| Ports & interfaces |
|---|
| Video port type |
VGA |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Console port |
RJ-45 |
| Connector 2 |
1 x USB Type A, 1 x HDB-15 |
| Connector 1 |
1 x RJ-45 |
| Features |
|---|
| Weight |
140 g |
| Maximum video resolution |
1920 x 1200 pixels |
| Material |
Plastic |
| Product colour |
Black, Blue, Metallic |
| Technical details |
|---|
| Weight |
140 g |
| Storage temperature (T-T) |
-20 - 60 °C |
| Package depth |
124 mm |
| Package weight |
166 g |
| Operating temperature (T-T) |
0 - 122 °F |
| Maximum video resolution |
1920 x 1200 pixels |
| Material |
Plastic |
| Dimensions (WxDxH) |
43 x 90 x 21.8 mm |
| Product colour |
Black, Blue, Metallic |
| Weight & dimensions |
|---|
| Weight |
140 g |
| Other features |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Package depth |
124 mm |
| Operating temperature (T-T) |
0 - 122 °F |
| Dimensions (WxDxH) |
43 x 90 x 21.8 mm |
| Product colour |
Black, Blue, Metallic |
| Logistics data |
|---|
| Master (outer) case width |
270 mm |
| Master (outer) case length |
470 mm |
| Master (outer) case height |
296 mm |
| Master (outer) case gross weight |
7.56 kg |
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case net weight |
5 kg |
| Harmonized System (HS) code |
84733080 |
| Export Control Classification Number (ECCN) |
EAR99 |
