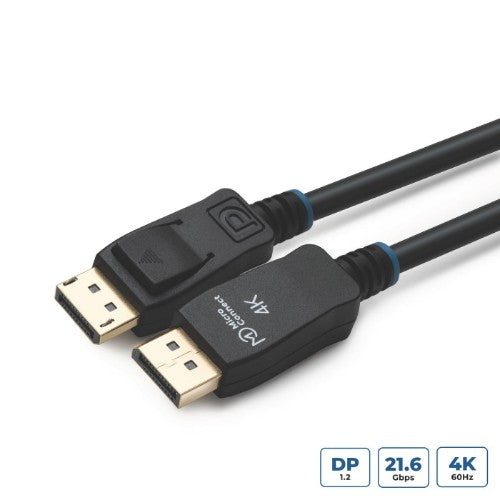

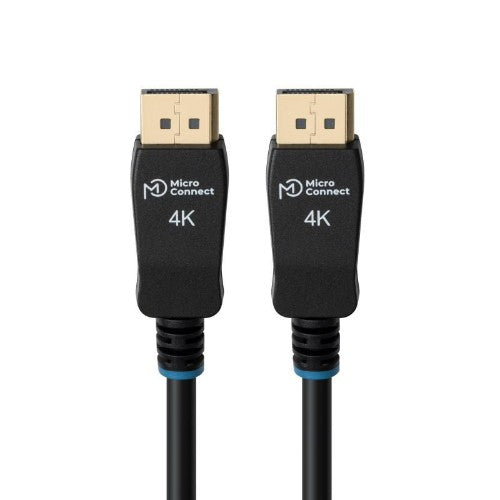

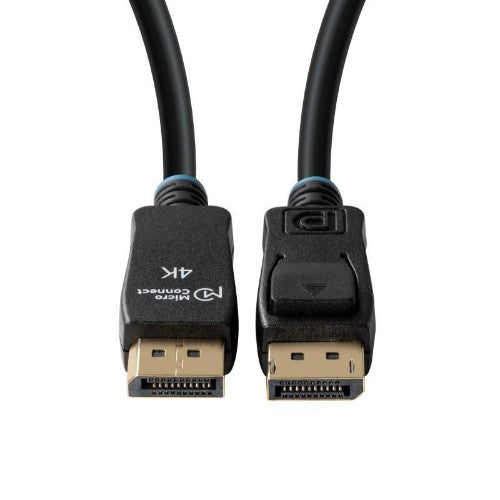

4K DisplayPort 1.2 Cable, 10m
Key Features
- 4K Ultra HD 2160p (60 Hz)
- Plug with lock for secure connections
- Gold-plated connectors for improved signal transmission
- Supporting 1080P@144Hz, 2K@144Hz
Description
DisplayPort (DP) is a digital display interface developed by a consortium of PC and chip manufactures and standardized by the Video Electronics Standards Association (VESA). This high performance HD digital video and audio cable is made for connecting monitors, laptops, projectors or graphic cards interface to a monitor with DisplayPort interface.
Specifications
| Features |
|---|
| Latching connectors |
Yes |
| DisplayPort Content Protection (DPCP) |
Yes |
| Product colour |
Black |
| Number of shielding layers |
3 |
| Cable length |
10 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Cable material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
28 |
| DisplayPort version |
1.2 |
| Data transfer rate |
21.6 Gbit/s |
| 3D |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
3840 x 2160 |
| Supported video modes |
2160p |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Maximum refresh rate |
60 Hz |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
8 mm |
| Weight |
550 g |
| Package weight |
700 g |
| Package width |
263 mm |
| Package depth |
263 mm |
| Package height |
72 mm |
| Packaging data |
|---|
| Cable diameter |
8 mm |
| Package weight |
700 g |
| Weight |
550 g |
| Package width |
263 mm |
| Package depth |
263 mm |
| Package height |
72 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
