Description

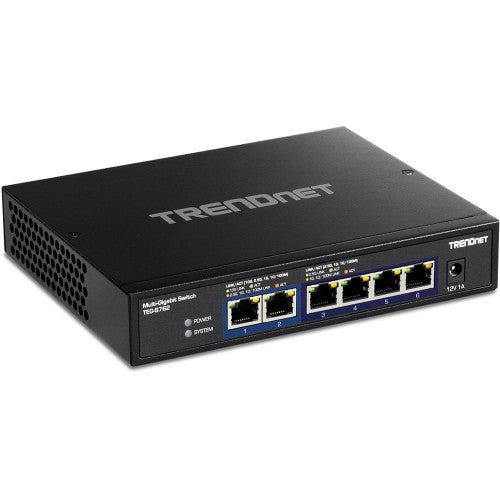

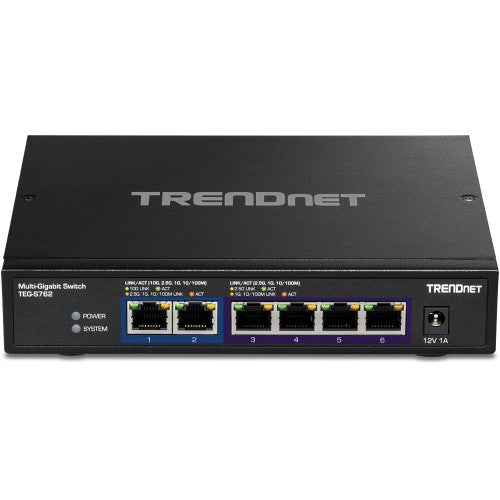

6-Port 10G Switch, 2 x 10G ports, 4 x 2.5G ports
Key Features
- 4 x 2.5G RJ-45 ports
- 2 x 10G RJ-45 ports
- Compatible with existing Cat5e or better cabling
- 60Gbps switching capacity
- Fanless design for silent operation
- Wall mountable
- NDAA / TAA compliant (U.S. and Canada only)
Description
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Networking standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| 10G support | No |
| Data transmission | |
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 60 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 44.64 Mpps |
| Design | |
| LED indicators | Yes |
| Rack mounting | No |
| Certification | CE FCC IC |
| Performance | |
| Mean time between failures (MTBF) | 379884 h |
| Packet buffer memory | 2 MB |
| Power | |
| Power consumption (max) | 11.9 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 180 mm |
| Height | 33 mm |
| Weight | 2.33 kg |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
| Technical details | |
| Mean time between failures (MTBF) | 379884 h |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 2 MB |
| Certificates | |
| Certification | CE FCC IC |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| User guide | Yes |
| Cables included | AC |
