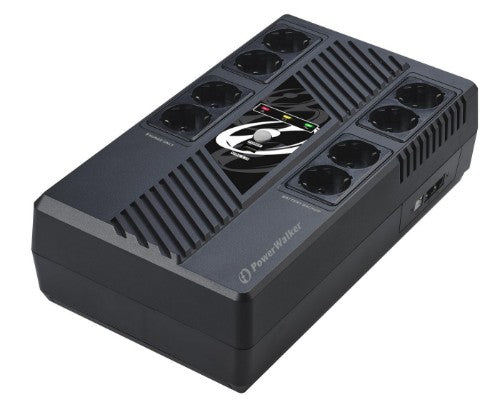

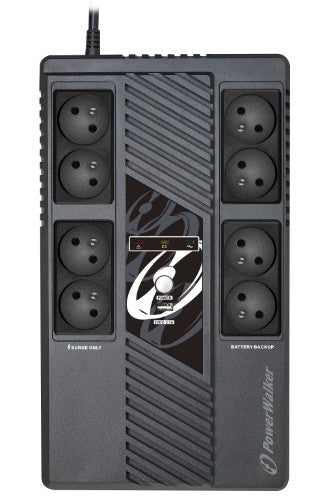

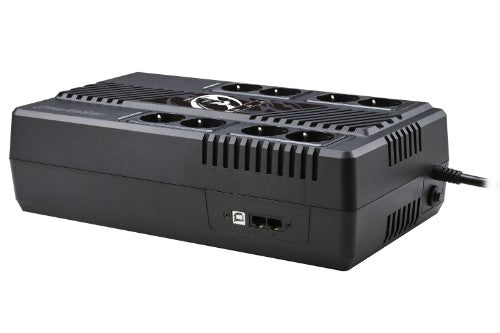

PowerWalker VI 600 MS FR uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 8 AC outlet(s)

600VA / 360W, 170-280 V AC, 50-60Hz, 1x 12V/7Ah, 8x CEE 7/5, 200x100x345 mm

Key Features

• Human Interface Device (HID) compatible USB connection (no additional drivers needed)
• Multi Socket Design
• Automatic Voltage Regulator
• USB Charging Port (2.1A)
• Easy user-replaceable battery design

Description

PowerWalker VI MS is a line-interactive UPS series with multiple sockets. 4 sockets with battery backup for critical loads and 4 sockets with bypass for non critical loads. The integrated AVR function ensures clean and stable output during power outages or voltage fluctuations. The UPS functions can be monitored and controlled via USB communication, either with a software or without (HID).

The multi socket design makes the VI MS series especially suitable for home and office applications. The UPS can be used on top of a desk or it can be mounted to a wall. Applications include home office, workstations, NAS etc.

Furthermore, the USB charging port (2.1A) offers additional functionality, and the design allows access to the battery compartment via the back panel for easy battery replacement.

Specifications

Power
Output power factor	0.6
Output power	360 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (max)	230 V
Surge energy rating	156 J
Output power capacity	0.6 kVA
Charging current	1 A
Performance
UPS topology	Line-Interactive
Waveform	Sine
Response time	6 ms
LED indicators	Yes
Power protection features	Overcharge, Overdischarge, Overload
Noise level	40 dB
Features
UPS topology	Line-Interactive
Waveform	Sine
Output power factor	0.6
Response time	6 ms
Output power	360 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Output operation voltage (max)	230 V
Surge energy rating	156 J
Power protection features	Overcharge, Overdischarge, Overload
Noise level	40 dB
Output power capacity	0.6 kVA
Input frequency	50/60 Hz
Charging current	1 A
Ports & interfaces
USB port	Yes
Serial interface	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	Type E
RS-232 ports	1
Ethernet LAN (RJ-45) ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	1
Battery voltage	12 V
Battery capacity	7 Ah
Battery recharge time	8 h
Typical backup time at half load	5.3 min
Typical backup time at full load	0.1 min
Charging current	1 A
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Package width	146 mm
Package depth	425 mm
Package height	269 mm
Weight	4.4 kg
Width	200 mm
Package weight	4.7 kg
Height	100 mm
Depth	345 mm
Packaging data
Package width	146 mm
Package depth	425 mm
Package height	269 mm
Package weight	4.7 kg
Logistics data
Harmonized System (HS) code	85078000
