Description
IEEE 802.11a/b/g/n/ac/ax, 1201+574 Mbps, 2.4/5 GHz
WiFi 6
The WiFi 6 standard delivers efficient connectivity that meets the demands of the growing number of connected personal and IoT devices. The USB-AX56 USB adapter gives your laptop or PC an instant plug-and-play upgrade to WiFi 6.
Ultrafast WiFi Speed
USB-AX56 is a 2x2 dual-band WiFi 6 client that lets you take full advantage of WiFi 6 routers. It offers a total wireless bandwidth of up to 1800 Mbps — 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band. That makes USB-AX56 up to 1.5X faster than a WiFi 5 client!*
* Comparing the speed of 2x2 802.11ax on 5 GHz / 80 MHz channels with 1024QAM modulation to speed of 2x2 802.11ac on 5 GHz / 80 MHz channels with 256QAM modulation.
4X More Efficient Connections
OFDMA and MU-MIMO greatly increase connection efficiency, giving improved network capacity.*
* A WiFi 6-compatible router is required to enjoy all the benefits of the WiFi 6 standard.
80% Longer Range
OFDMA divides frequency channels into smaller sub-channels, which means they can travel further.**
**Refers to uplink OFDMA performance.
7X Better Power Savings
Target Wake Time allows devices to sleep when they are not active, reducing power consumption.***
***Compared to WiFi 5. Power savings vary according to the scenario.
The Benefits of WiFi 6
Beamforming Boosts WiFi Range
With beamforming, your router can locate USB-AX56 in order to direct a stronger signal in the direction of your device. Beamforming improves signal strength and hence gives the device better range.
Enhanced WPA3 Network Security
The successor to the well-established WPA2 protocol, WPA3 adds new features that simplify WiFi security, while making your connections much more secure.
Plug-And-Play
USB-AX56 can be plugged easily into laptops or PCs with a USB port to give it full WiFi 6 speed capabilities. USB-AX56 supports a wide variety of operating systems, including Windows 10/8.1/8/7 and Linux, making it the perfect choice for any laptop or PC.
Key Features
- Instant upgrade to WiFi 6 – Boost your PC to 802.11ax standard via USB with speeds up to 1800 Mbps
- Ultra-high efficiency – Enable faster transmission in high density environments with OFDMA, MU-MIMO and BSS Coloring

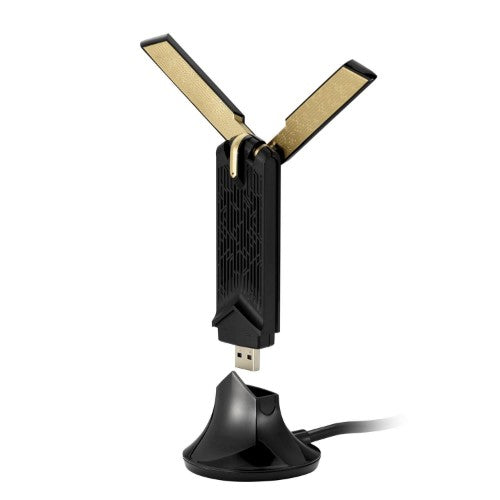

- Amplified signal – External antenna and cradle ensures powerful WiFi signal
- Supports WPA3 security – For enhanced WiFi security and more robust authentication
- Plug-and-play – Easy to use with wide operating system support
Description
Instant Upgrade toWiFi 6
The WiFi 6 standard delivers efficient connectivity that meets the demands of the growing number of connected personal and IoT devices. The USB-AX56 USB adapter gives your laptop or PC an instant plug-and-play upgrade to WiFi 6.
Ultrafast WiFi Speed
USB-AX56 is a 2x2 dual-band WiFi 6 client that lets you take full advantage of WiFi 6 routers. It offers a total wireless bandwidth of up to 1800 Mbps — 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band. That makes USB-AX56 up to 1.5X faster than a WiFi 5 client!*
* Comparing the speed of 2x2 802.11ax on 5 GHz / 80 MHz channels with 1024QAM modulation to speed of 2x2 802.11ac on 5 GHz / 80 MHz channels with 256QAM modulation.
4X More Efficient Connections
OFDMA and MU-MIMO greatly increase connection efficiency, giving improved network capacity.*
* A WiFi 6-compatible router is required to enjoy all the benefits of the WiFi 6 standard.
80% Longer Range
OFDMA divides frequency channels into smaller sub-channels, which means they can travel further.**
**Refers to uplink OFDMA performance.
7X Better Power Savings
Target Wake Time allows devices to sleep when they are not active, reducing power consumption.***
***Compared to WiFi 5. Power savings vary according to the scenario.
The Benefits of WiFi 6
Beamforming Boosts WiFi Range
With beamforming, your router can locate USB-AX56 in order to direct a stronger signal in the direction of your device. Beamforming improves signal strength and hence gives the device better range.
Enhanced WPA3 Network Security
The successor to the well-established WPA2 protocol, WPA3 adds new features that simplify WiFi security, while making your connections much more secure.
Plug-And-Play
USB-AX56 can be plugged easily into laptops or PCs with a USB port to give it full WiFi 6 speed capabilities. USB-AX56 supports a wide variety of operating systems, including Windows 10/8.1/8/7 and Linux, making it the perfect choice for any laptop or PC.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 1775 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Technical details | |
| Plug and Play | Yes |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Security algorithms | WPA3 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1775 Mbit/s |
| Design | |
| Plug and Play | Yes |
| Internal | No |
| Component for | PC |
| Power | |
| USB powered | Yes |
| Weight & dimensions | |
| Weight | 44 g |
| Security | |
| Security algorithms | WPA3 |
| Performance | |
| Security algorithms | WPA3 |
| Plug and Play | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Harmonized System (HS) code | 85176990 |
