Description

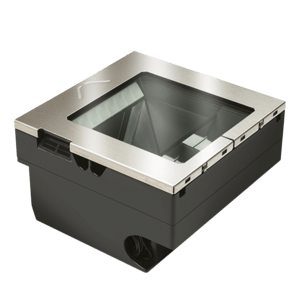

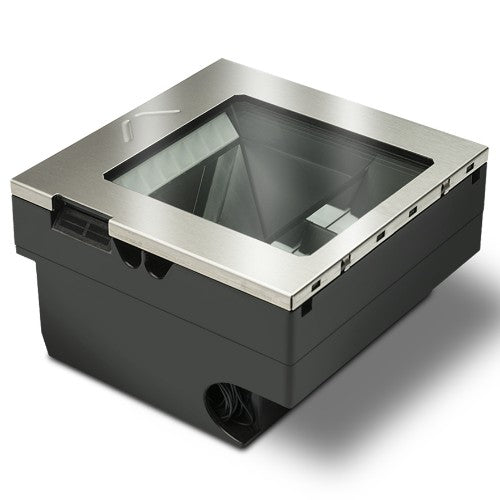

Magellan 3510HSi, Sapphire Platter, Default Configuration, 1D/2D Scanning, Standard Mount, No Power Supply, No Cable
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper couponsm while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Key Features
- Advanced digital imaging provides class-leading performance and reliability
- Seamless 1D, 2D and Digimarc® digital watermark reading
- Smoothly reads all bar codes, whether displayed on cell phones or printed
- Subtle, adaptive illumination for user comfort
- Solid-state electronics for silent operation and superior reliability
- Powers from single Type A USB port- 2.5W, available Magellan Customer Service Scanner (CSS) with omni-mount for reading cell phones, coupons and loyalty cards
- Software driven - flexible and upgradeable
- Image capture
- Micro SD card slot

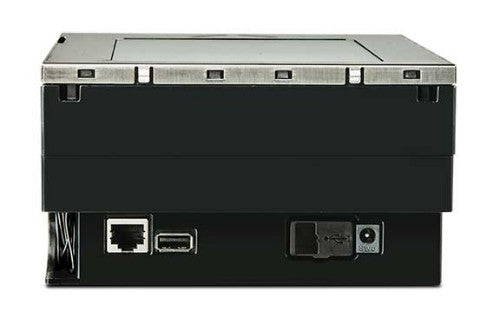

- Multiple interfaces in every unit
- Powered USB auxiliary port - Not enabled when connected to 5V USB Type A host port
- Checkpoint Systems and Tyco Sensormatic EAS compatible
- Diagnostics reporting
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Description
IN-COUNTER HIGH PERFORMANCE BAR CODE READERThe Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper couponsm while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Specifications
| Scanning | |
|---|---|
| Type | Built-in bar code reader |
| Linear (1D) barcodes supported | GS1 DataBar |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, QR Code, WaterCode |
| Yaw reading angle | -75 - 75° |
| Tilt reading angle | 0 - 360° |
| Scanner type | 1D/2D |
| Pitch reading angle | 0 - 65° |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 2 |
| Standard interfaces | RS-232, USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Buzzer | Yes |
| Image formats supported | BMP, JPEG |
| Compatible memory cards | MicroSD (TransFlash) |
| Ambient lighting | Yes |
| Print contrast | 25% |
| Design | |
| Type | Built-in bar code reader |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Power source type | DC, USB |
| Power consumption (typical) | 2.1 W |
| Input frequency | 50 - 60 Hz |
| Power consumption (standby) | 1.25 W |
| Input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 152 mm |
| Depth | 152 mm |
| Height | 87 mm |
| Weight | 980 g |
| Technical details | |
| Type | Built-in bar code reader |
| USB 2.0 ports quantity | 2 |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| USB 2.0 ports quantity | 2 |
