Description
Line-Interactive, 3000 VA, 1800W, AVR, 1 x C20 In, 8 x C13 Out, USB, RS-232, EPO, RJ-45 / RJ-11 Protection, Intelligent Slot, UK
Improved internal heat dissipation makes sure the UPS runs silently during standard operation. A comprehensive LCD panel provides all the necessary information and will auto-dim after a few seconds. These features make the UPS series an attractive solution for home use as well.
Key Features
- Automatic Voltage Regulator with Pure Sine Wave output
- USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
- Auto dimming screen (UPS is woken up with mute button)
- Fully automatic and silent operation
Description

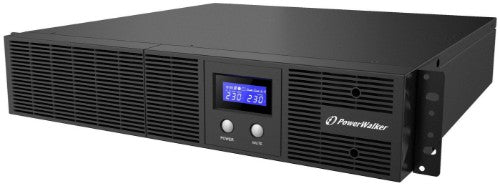

PowerWalker VI 1200-3000 RLE is a compact line-interactive series with rack design. The unit provides Pure Sine Wave output with voltage regulation, offering optimal protection for small motor-based loads and servers with APFC power supplies. The USB port features HID support, which allows native communication with nearly all common operating systems – removing the need for installing additional software.Improved internal heat dissipation makes sure the UPS runs silently during standard operation. A comprehensive LCD panel provides all the necessary information and will auto-dim after a few seconds. These features make the UPS series an attractive solution for home use as well.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 10% |
| Output frequency regulation | 0.5 Hz |
| Output power factor | 0.6 |
| Output power | 1800 W |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 290 V |
| Efficiency | 98% |
| Power factor | 0.6 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 98% |
| Charging current | 2 A |
| Performance | |
| Audible alarm modes | Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 4 ms |
| LED indicators | Yes |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Power protection features | Overload |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Audible alarm modes | Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Output voltage regulation | 10% |
| Output frequency regulation | 0.5 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power factor | 0.6 |
| Response time | 4 ms |
| Output power | 1800 W |
| Input operation voltage (min) | 165 V |
| Input operation voltage (max) | 290 V |
| Efficiency | 98% |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Power protection features | Overload |
| Power factor | 0.6 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 98% |
| Input frequency | 50/60 Hz |
| Charging current | 2 A |

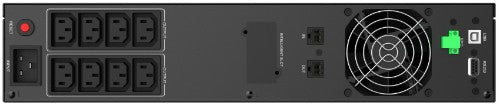

| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 4 |
| Battery voltage | 12 V |
| Battery capacity | 7.2 Ah |
| Battery recharge time | 4 h |
| Typical backup time at half load | 7.4 min |
| Typical backup time at full load | 1.3 min |
| Charging current | 2 A |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cooling type | Active |
| Built-in fan | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Package width | 556 mm |
| Package depth | 231 mm |
| Package height | 550 mm |
| Weight | 21.8 kg |
| Width | 438 mm |
| Package weight | 23.6 kg |
| Height | 88 mm |
| Depth | 430 mm |
| Packaging data | |
| Cables included | Input power cable, RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Package width | 556 mm |
| Package depth | 231 mm |
| Package height | 550 mm |
| Package weight | 23.6 kg |
| Other features | |
| Nominal input voltage | 230 V |
| Packaging content | |
| Cables included | Input power cable, RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
