Description

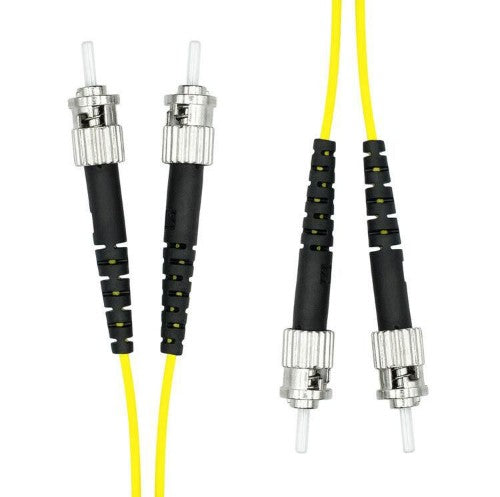

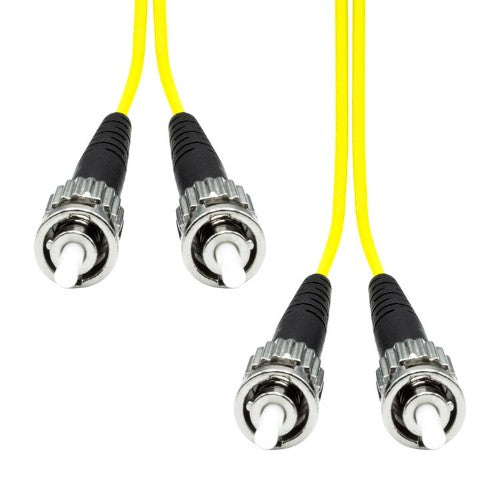

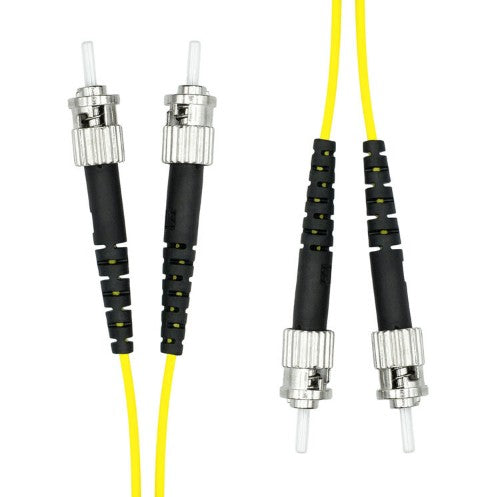

ST-ST UPC OS2 Duplex SM Fiber Cable 7M
The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.
Description
When engineering a high speed and bandwidth heavy network over long distances, there is no doubt that a fiber optic cable network is the most efficient and cost-effective choice.The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | ST |
| Connector 2 | ST |
| Cable length | 7 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 30 dB |
| Compliance certificates | RoHS |
| Features | |
| Bending radius | 5 cm |
| Fibre optic type | OS2 |
| Return loss | 55 dB |
| Connector gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | ST |
| Connector 2 | ST |
| Cable length | 7 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -20 - 70 °C |
| Insertion loss | 30 dB |
| Data transfer rate | 2 Gbit/s |
| Country of origin | China |
| Harmonized System (HS) code | 85447000 |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector polish type | UPC |
| Plug and Play | Yes |
| Data transmission | |
| Data transfer rate | 2 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
| Bending radius | 5 cm |
| Cable length | 7 m |
| Cable diameter | 2 mm |
| Weight | 54 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
| Quantity per pack | 1 pc(s) |
