Description

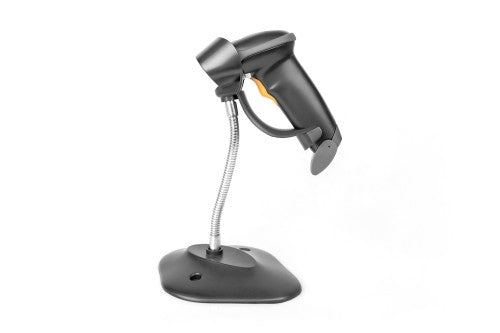

2D Bluetooth Barcode Scanner 200 scan/sec, with holder
- Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
- Supports wireless connection via Bluetooth or cabled via USB
- Anti-inference: External light sources have no influence on the scan
- Reads barcodes on screens – ideal for payment via smartphone/QR code
- Automatic mode enables highly efficient operation
- 200 scans per second, bidirectional for reliable detection
- High resolution: Scans high-resolution barcodes
- Dust-protected and water-resistant (IP54)
- Silicon cover absorbs impacts and protects against damage
- Ideal for retail, logistics, and commerce of all kinds
The Battery-Operated 2D Barcode Scanner from DIGITUS® operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per second, this bidirectional scanner delivers ideal results. The manual scanner is suitable for one- and two-dimensional high-resolution codes such as barcodes or QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payment. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.
Key Features
- 2D & 1D scan - barcodes & QR codes from paper or displays
- Power consumption: 3.3 - 5 V DC, 120mA
- Power supply: Rechargeable battery
- Scan type: Image capture
- Sensor: CMOS
- CPU: ARM 32-Bit Cortex
- Battery type: 2000 mAh Lion battery
- Working time: up to 18 hours
- Interface: USB
- Light source: LED (CMOS)
- Trigger: Push button, Automatic, Continuous
- Error rate in bits: 1/5 million, 1/20 million
- Resolution: D: ≥5mil, 2D:≥ 10mil
- Scan width: 10 cm
- Communication range: 10 m indoor range; 15 m outdoor range
- Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
- Scan angle: rotation angle ± 360°, inclination angle ± 60°, declination angle ± 60°
- Decoding: 1D: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss Expanded, Deutsche 12, Industrial 25, Code 128, Codabar, UPC, CODA BAR, Code 39, Code 93, BIGCODE, EAN 8, EAN 13.
- Decoding 2D: PDF417, QR Code, Datamatrix
- Compatible with Windows / Android / iOS / Mac / Linux systems
- Scanner holder included
- Material: ABS + PC
- Protection class: IP54
- Operating temperature: -20°C - 50°C
- Storage temperature: -40°C - 70°C
- Compatible with Windows 8-11/ Android/iOS/Mac/Linux systems
- Supply cable: 2 m (USB - RJ45)
- Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
- Weight: 150 g
- Color: Black
Description
High-resolution hand scanner for reliable use in retail and logistics – compatible with Bluetooth® and suitable for QR codes- Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
- Supports wireless connection via Bluetooth or cabled via USB
- Anti-inference: External light sources have no influence on the scan
- Reads barcodes on screens – ideal for payment via smartphone/QR code
- Automatic mode enables highly efficient operation
- 200 scans per second, bidirectional for reliable detection
- High resolution: Scans high-resolution barcodes
- Dust-protected and water-resistant (IP54)
- Silicon cover absorbs impacts and protects against damage
- Ideal for retail, logistics, and commerce of all kinds
The Battery-Operated 2D Barcode Scanner from DIGITUS® operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per second, this bidirectional scanner delivers ideal results. The manual scanner is suitable for one- and two-dimensional high-resolution codes such as barcodes or QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payment. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Data Matrix, PDF417, QR Code |
| Tilt reading angle | -60 - 60° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Read rate (max) | 200 reads/s |
| Maximum scan width | 10 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 2 m |
| Standard interfaces | Bluetooth, RJ-45, USB |
| Performance | |
| Operating system installed | Linux |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Country of origin | China |
| Design | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Power | |
| Power consumption | 120 mA |
| Power source type | Battery |
| Battery life | 18 h |
| Input voltage | 5 V |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2000 mAh |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 87 mm |
| Height | 165 mm |
| Weight | 150 g |
| Technical details | |
| Operating system installed | Linux |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Light source | 650 nm |
| International Protection (IP) code | IP54 |
| Compatible operating systems | Mac |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Operating system installed | Linux |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Light source | 650 nm |
| Compatible operating systems | Mac |
