Description
Gigabit Ethernet Switch 16-port, 10 inch, unmanaged
- 16 Gigabit ports for high connection density
- 32 Gbps backplane for efficient data distribution
- Non-blocking with up to 1,488 Mpps per port
- Fanless, passive cooling system - noiseless continuous operation
- Energy-efficient with only 15 W power consumption
- Auto MDI/MDI-X for simple cabling
- Full compatibility with IEEE 802.3, 802.3u, 802.3ab, 802.3x
- Ideally designed for 10" enclosures (1U)
- Simple plug-and-play installation without management
- Robust metal housing for long-lasting use

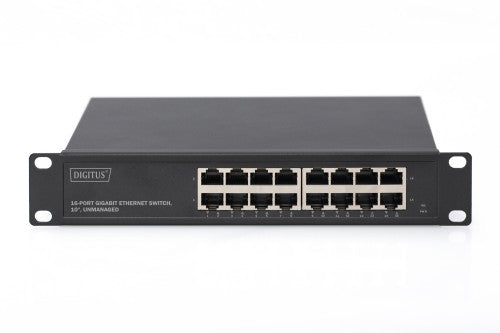

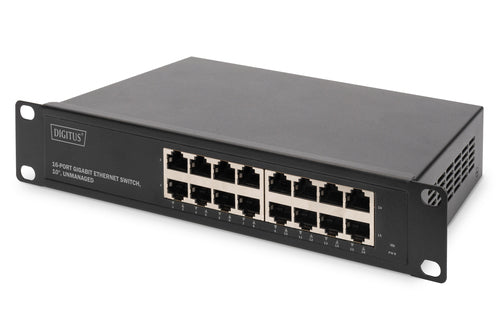

The DIGITUS® DN-80115 is a 16-port Gigabit switch in a 10" form factor, which is ideal for network infrastructures with many wired end devices - for example in offices, schools, stores or small server rooms. With 16 Gigabit ports and a 32 Gbps backplane, it offers sufficient power reserves to process high data rates in parallel. All ports support auto-negotiation and Auto MDI/MDI-X, which simplifies cabling and reduces installation costs. The switch is non-blocking and supports full-duplex flow control in accordance with IEEE 802.3x, which efficiently handles overload situations. A forwarding rate of up to 1,488 Mpps per port ensures stable performance even under high utilization. The fanless design ensures silent operation and increases reliability by eliminating moving parts. Thanks to its 10" compatibility and 1U height, the DN-80115 fits seamlessly into 10" network cabinets and wall-mounted housings. Top USP: High port density with 16 Gigabit ports in a small 10" form factor - ideal for central distribution points.
Key Features
- Network & Performance
- 16 × 10/100/1000 Mbps RJ45
- Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Non-blocking, non-head-of-line forwarding
- Back-pressure and bandwidth control on each port
- Store-and-forward technology
- Automatic speed and duplex detection (half/full)
- 20 / 200 / 2000 Mbit/s in full duplex mode
- Auto MDI/MDI-X function
- Backplane: 32 Gbps
- MAC addresses: up to 8K
- Design & assembly
- Completely fanless
- Metal housing
- Suitable for 10-inch rack mounting
- Dimensions: 252 × 150 × 42 mm
- Weight: approx. 2 kg
- Electrics & environment

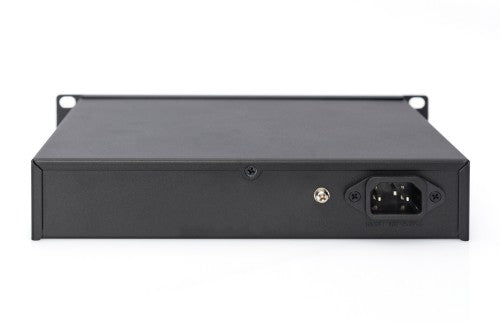

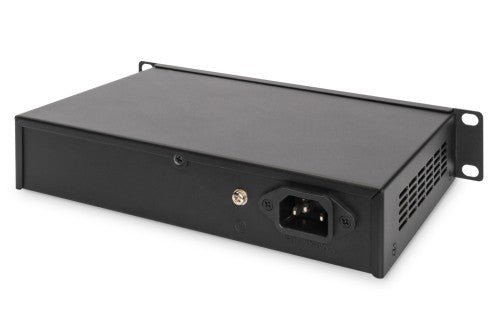

- Internal power supply unit, 100-240 V AC
- Power consumption: ~10 W
- Operating temperature: 0-40 °C
- Storage: -10-70 °C
- Humidity: 5-95 %, non-condensing
Description
Expands networks quickly and cost-effectively by 16 Gigabit ports, ideal for compact 10" distribution solutions.- 16 Gigabit ports for high connection density
- 32 Gbps backplane for efficient data distribution
- Non-blocking with up to 1,488 Mpps per port
- Fanless, passive cooling system - noiseless continuous operation
- Energy-efficient with only 15 W power consumption
- Auto MDI/MDI-X for simple cabling
- Full compatibility with IEEE 802.3, 802.3u, 802.3ab, 802.3x
- Ideally designed for 10" enclosures (1U)
- Simple plug-and-play installation without management
- Robust metal housing for long-lasting use
The DIGITUS® DN-80115 is a 16-port Gigabit switch in a 10" form factor, which is ideal for network infrastructures with many wired end devices - for example in offices, schools, stores or small server rooms. With 16 Gigabit ports and a 32 Gbps backplane, it offers sufficient power reserves to process high data rates in parallel. All ports support auto-negotiation and Auto MDI/MDI-X, which simplifies cabling and reduces installation costs. The switch is non-blocking and supports full-duplex flow control in accordance with IEEE 802.3x, which efficiently handles overload situations. A forwarding rate of up to 1,488 Mpps per port ensures stable performance even under high utilization. The fanless design ensures silent operation and increases reliability by eliminating moving parts. Thanks to its 10" compatibility and 1U height, the DN-80115 fits seamlessly into 10" network cabinets and wall-mounted housings. Top USP: High port density with 16 Gigabit ports in a small 10" form factor - ideal for central distribution points.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| VLAN support | No |
| 10G support | No |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Vandal-proof | No |
| Suitable for outdoor use | No |
| Country of origin | China |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Ethernet interface type | Gigabit Ethernet |
| Country of origin | China |
| Operational conditions | |
| Storage temperature (T-T) | 0 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Virtual LAN features | |
| VLAN support | No |
| Packaging data | |
| Package volume | 5145.6 cm³ |
| Package width | 240 mm |
| Package depth | 67 mm |
| Package weight | 1.6 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| UK Trade Tariff code | 85176200 |
