Description

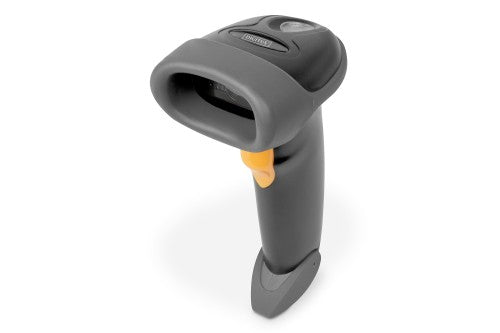

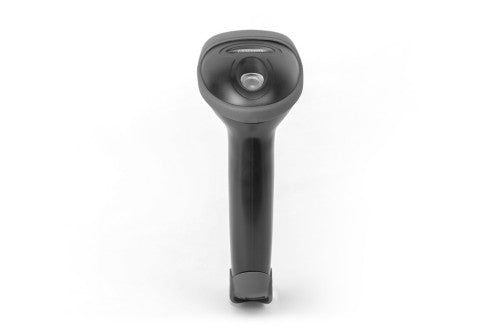

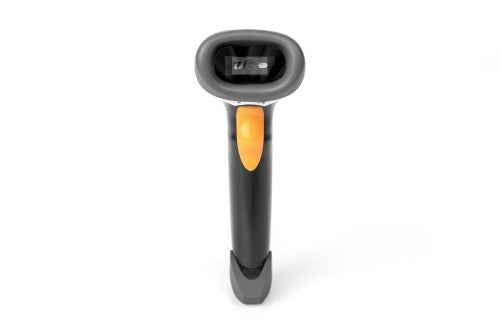

2D Barcode Scanner, bi-directional 200 scans/sec, 2 m USB-RJ45 Cable, with holder
- Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
- High resolution: Scans high-resolution barcodes
- 200 scans per second, bidirectional for reliable detection
- Suitable for one- and two-dimensional barcodes
- Reads barcodes on screens – ideal for payment via smartphone/QR code
- Dust-protected and water-resistant (IP54)
- Ideal for retail, logistics, and commerce of all kinds
- Plug and Play – no additional driver necessary
- Silicon cover absorbs impacts and protects against damage
- Anti-inference: External light sources have no influence on the scan.
The DIGITUS® 2D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per second, this bidirectional scanner delivers ideal results. The manual scanner is suitable for one- and two-dimensional high-resolution codes such as barcodes or QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payment. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.
Key Features
- 2D & 1D Scan – Barcodes & QR codes on paper or displays
- Power consumption: 3.3 - 5 V DC, 120 mA
- Power supply: USB
- Scan type: Image capture
- Sensor: CMOS
- CPU: ARM 32-Bit Cortex
- Interface: USB
- Light source: LED (CMOS)
- Trigger: Pushbutton, automatic
- Number of scans: 200 per second
- Error rate in bits: 1/5 million, 1/20 million
- Resolution: 1D: ≥5mil, 2D:≥ 10mil
- Scan width: 10 cm
- Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
- Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
- Anti-interference: External light sources have no influence on the scan
- 1D decoding: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6,
- 2D decoding: PDF417, QR code, Datamatrix.
- Compatible with Windows / Vista / Android / iOS / Mac / Linux systems

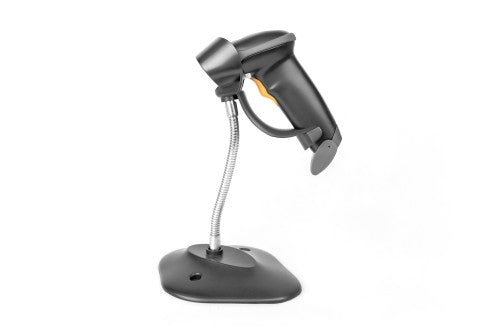

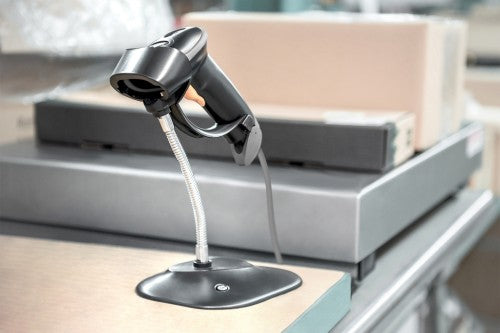

- Includes scanner holder
- Material: ABS + PC
- Protection type: IP54
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C

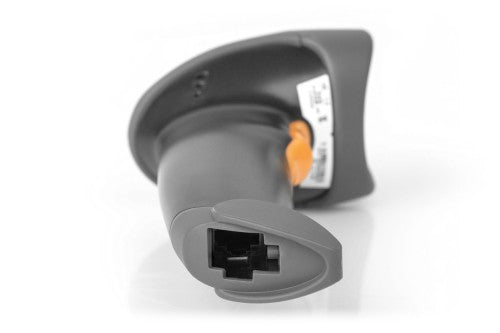

- Cable: 2 m (USB - RJ45)
- Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
- Weight: 120 g
- Color: Black
Description
High-resolution hand scanner for reliable use in retail and logistics – also suitable for QR codes- Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
- High resolution: Scans high-resolution barcodes
- 200 scans per second, bidirectional for reliable detection
- Suitable for one- and two-dimensional barcodes
- Reads barcodes on screens – ideal for payment via smartphone/QR code
- Dust-protected and water-resistant (IP54)
- Ideal for retail, logistics, and commerce of all kinds
- Plug and Play – no additional driver necessary
- Silicon cover absorbs impacts and protects against damage
- Anti-inference: External light sources have no influence on the scan.
The DIGITUS® 2D Barcode Scanner operates reliably and economically. Its ergonomic design makes it easy to handle, an excellent choice for a wide variety of working environments such as retail, logistics and commerce of all kinds. With 200 scans per second, this bidirectional scanner delivers ideal results. The manual scanner is suitable for one- and two-dimensional high-resolution codes such as barcodes or QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payment. Each scanning process is confirmed with visual and auditory signals and the scanner supports the most popular code types. Wide scan angles ensure even faster barcode detection. The scanner is dust-protected and water-resistant, impacts are absorbed by the silicon cover to protect against damage.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), IATA, ISSN, ITF-14, ITF-6, Industrial 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Data Matrix, PDF417, QR Code |
| Tilt reading angle | -60 - 60° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Read rate (max) | 200 reads/s |
| Maximum scan width | 10 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 2 m |
| Standard interfaces | RJ-45, USB |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Country of origin | China |
| Design | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Power | |
| Power consumption | 120 mA |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 87 mm |
| Height | 165 mm |
| Weight | 120 g |
| Technical details | |
| Type | Handheld bar code reader |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Light source | 650 nm |
| International Protection (IP) code | IP54 |
| Compatible operating systems | Mac/Linux |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Light source | 650 nm |
| Compatible operating systems | Mac/Linux |
