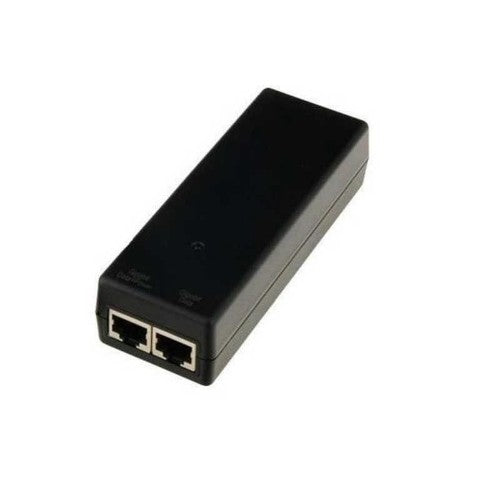

Cambium Networks N000900L001D PoE adapter Gigabit Ethernet 30 V

Cambium Networks PoE Power Injector 30V 15W

Description

Cambium Networks radios utilize PoE (Power over Ethernet) for delivering power and data. This PoE
power supply has an AC input and a Data Input which then drives a 30V power plus data( PoE)
output to the radio. This PoE power supply meets stringent Level VI efficiency requirements and
carries regulatory compliance for deployment in most locations arounds the world. The unit is
designed to be compact easy to deploy while delivering reliability and high performance.

Specifications

Network
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE) voltage	30 V
Features
Surge protection	Yes
Product colour	Black
Certification	UL 60950-11, CuL, Aussie RCM, C-Tick and MEPS, CB, NOM, CE, LPS, Argentina, Singapore, Taiwan, Korea KC and MEPS, Brazil, China, TUV/GS, EAC, BIS, ST CRL, SABS; EN61000-4-2, level 3; EN61000-4-3, level 2; EN61000-4-5, level 3; EN61000-4-6, level 2; EN61000-4-11w; EN61000-4-2, Level 3; EN61000-4-5, Level 3
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Output power	15 W
Output current	0.5 A
Power over Ethernet (PoE) voltage	30 V
AC adapter input voltage	90 - 264 V
AC adapter frequency	47 - 63 Hz
Surge protection voltage	8 kV
Certificates
Certification	UL 60950-11, CuL, Aussie RCM, C-Tick and MEPS, CB, NOM, CE, LPS, Argentina, Singapore, Taiwan, Korea KC and MEPS, Brazil, China, TUV/GS, EAC, BIS, ST CRL, SABS; EN61000-4-2, level 3; EN61000-4-3, level 2; EN61000-4-5, level 3; EN61000-4-6, level 2; EN61000-4-11w; EN61000-4-2, Level 3; EN61000-4-5, Level 3
Compliance certificates	RoHS, WEEE
Sustainability
Sustainability certificates	ENERGY STAR
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	0 - 5000 m
Weight & dimensions
Weight	93 g
Width	474 mm
Depth	86 mm
Height	30 mm
Technical details
Power over Ethernet (PoE)	Yes
Operating altitude	0 - 5000 m
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS, WEEE
