Vivolink VLUSBEXT50 console extender Console transmitter & receiver

USB 2.0 Extender Kit 50m (4-Port)

Key Features

• High-Speed USB 2.0 compliant, the transfer data rate is 360Mbps.
• 2xUSB-A ports 5V 1Amp + 2xUSB-A output 5V 500mA
• Transmission distance is up to 50m over a CAT5e/6/7 cable
• Equipped with 4 USB peripherals to connect with keyboards, mouse, cameras and more
• Compatible with Windows, IOS and Linux
• Plug and play

Description

The VLUSBEXT50 extender kit is a transmitter (Tx) and a receiver (Rx) that can be used to connect up to 4 USB devices like: camera, speaker, touch screen or other USB2.0 device and signal is transfered via network cable to computer.

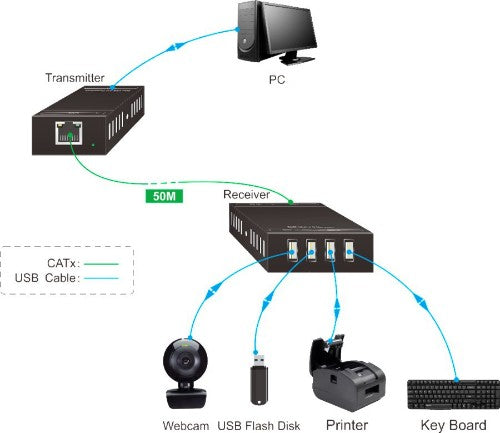

Typical installation:
Meeting rooms

It has four USB ports that can extend USB 2.0 signal up to 50 meters over a Cat5e/6/7 cable.
The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.

Extender is build in a durable metal housing and the compact size enables space-saving installation.

Specifications

Technical details
Type	Console transmitter & receiver
LED indicators	Power
Cable types supported	Cat7
Maximum transfer distance	50 m
Connection to PC	Yes
Product colour	Black
Ethernet LAN	Yes
Number of devices supported	4
Plug and Play	Yes
Ports & interfaces
USB 2.0 ports quantity	4
RJ-45 ports quantity	1
DC-in jack	Yes
USB 2.0 Type-B ports quantity	1
USB 2.0 Type-A ports quantity	4
Weight & dimensions
Package weight	438 g
Weight	227 g
Colour
Product colour	Black
Packaging content
AC adapter included	Yes
Manual	Yes
Cables included	USB Type-A to USB Type-B
Power
Power source type	DC
Input voltage	12 V
Input current	2 A
