Description
OnLine UPS Module, 1500VA/1500W
- High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
- High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.

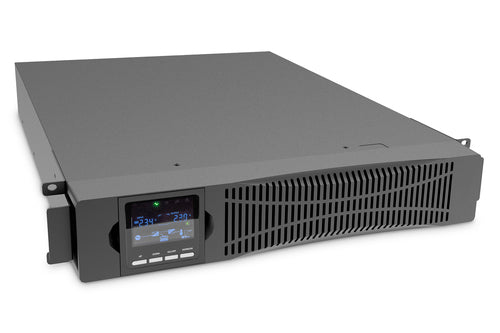

- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

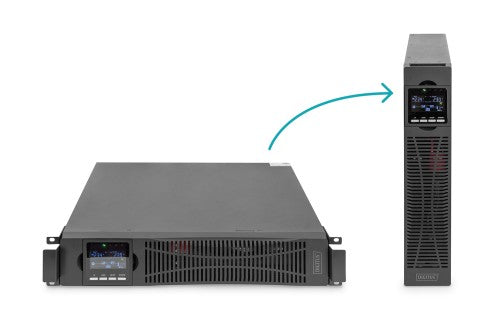

- Compact rack/tower design optimizes rack space and allows for flexible installation.
- Minimized equipment downtime with hot-swappable, user-replaceable battery modules that can be replaced on the fly.
- External battery modules enable extended runtime.

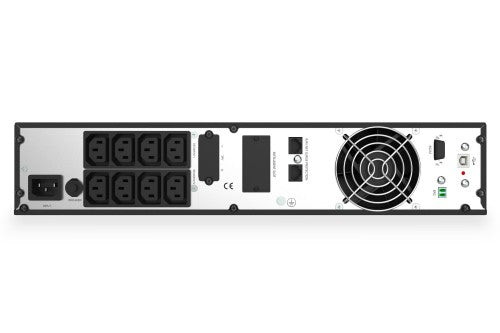

- High number of outlets (8 x C13) for optimal power distribution to loads.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system.
- Automatic battery self-test and fan speed control increase component life.
- Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
Key Features
- Online double conversion system (VFI-SS-111)
- Input: socket IEC60320 C14, 208/220/230/240 Vac
- Output: 8 x IEC60320 C13, max. 10A per socket
- System power rating: 1500 VA / 1500 W, power factor 1.0
- AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
- Replaceable internal battery pack during operation.
- Battery: valve-regulated, non-spillable lead-acid battery.
- Battery capacity: 3 x 12V x 9.0 Ah
- Full load run time: 4 min; half load run time: 12 min
- Charge: 4 hours to 90% capacity after fully discharged
- Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
- Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
- Emergency power-off (EPO) contact for UPS shutdown in case of emergency
- Maximum operating temperature: 0 - 40 °C
- Storage temperature: -25 - 55 °C
- Relative humidity: 20 - 90% non-condensing
- Operating altitude: < 1500 m
- Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
- Product weight: 15,5 kg
- Shipping dimensions WxDxH (mm): 555 x 595 x 202
- Shipping weight: 20,2 kg
- Safety standards: IEC/EN62040-1,IEC/EN60950-1
- EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
- Approval: CE declaration
- Scope of delivery: UPS unit, feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, mains cable (1.8m protective contact socket (type 7/4) to IEC60320 socket C14), IEC C13 connection cable, 19" installation brackets
- Optional available: 19" UPS mounting kit (profile rails), part number DN-170109
Description
The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.- High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
- High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.
- Compact rack/tower design optimizes rack space and allows for flexible installation.
- Minimized equipment downtime with hot-swappable, user-replaceable battery modules that can be replaced on the fly.
- External battery modules enable extended runtime.
- High number of outlets (8 x C13) for optimal power distribution to loads.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system.
- Automatic battery self-test and fan speed control increase component life.
- Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
Specifications
| Power | |
|---|---|
| Output power | 1500 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 10 A |
| Efficiency | 93% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 1 |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 98% |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Features | |
| Country of origin | China |
| UPS topology | Double-conversion (Online) |
| Output power | 1500 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Maximum current | 10 A |
| Efficiency | 93% |
| Emergency Power Off (EPO) | Yes |
| Power factor | 1 |
| Output power capacity | 1.5 kVA |
| Efficiency (ECO mode) | 98% |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Battery | |
| Number of batteries supported | 3 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Typical backup time at half load | 12 min |
| Typical backup time at full load | 4 min |
| Battery recharge time(90%) | 4 h |
| Design | |
| Country of origin | China |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| Certification | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 1500 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Software CD | Yes |
| Safety regulation & standards | |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| Weight & dimensions | |
| Package width | 555 mm |
| Package depth | 595 mm |
| Package height | 202 mm |
| Weight | 15.5 kg |
| Width | 440 mm |
| Package weight | 19.8 kg |
| Height | 86.5 mm |
| Depth | 460 mm |
| Package volume | 66705.5 cm³ |
| Packaging data | |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Manual | Yes |
| Software CD | Yes |
| Package volume | 66705.5 cm³ |
| Package width | 555 mm |
| Package depth | 595 mm |
| Package height | 202 mm |
| Package weight | 19.8 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85078000 |
| UK Trade Tariff code | 85044085 |
| Other features | |
| Size (imperial) | 48.3 cm (19") |
