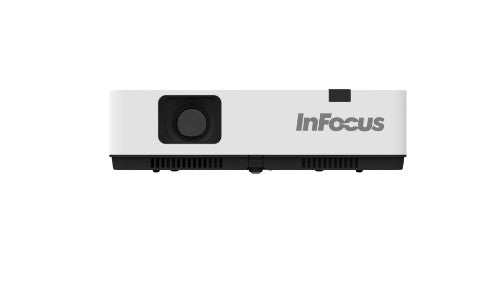

LCD with Micro-Lens Array, XGA 1024 x 768, 4:3, 2000:1, 3400l, UHP Lamp, HDMI 1.4
Description
XGA - 3400 Lumens - 4:3 Aspect Ratio
Advanced. LCD. Projection. For the first time in over a decade, InFocus welcomes its newest LCD projector. Of course, a lot has changed since InFocus released the first LCD over 25 years ago, but the dedication to the highest quality products and providing cutting-edge technologies has not. Placed alongside our other Lamp, LED, and Laser models, this new affordable and bright LCD series comes packed with: up to 4800 lumens, a 50000:1 contrast ratio, signal inputs up to 3840 x 2160 (4K) @ 30Hz, and weighs only 3.3kg – making it incredibly easy to move around your home, office, or anywhere!
Display over USB
The latest display technology! Display content from your Windows laptop or computer via the USB-C or USB-A port with a USB cable to the projector.
Memory Viewer
View files, images, and video with audio directly from a USB thumb drive using the projector USB-A port.
Six Point Pincushion & Barrel Adjustment
Projecting on to an uneven or rounded surface? We have you covered with our optical distortion algorithms and built-in image correction software.
Horizontal & Vertical Keystone
Correct the displayed image quickly and effortlessly with both horizontal and vertical keystone correction.
Display over LAN
Connect your projector and Windows device to the same local area network and display source content over the network to the projector and onto the big screen. When no network is available, we also offer the ability to display via USB to the projector's RJ45 port by cable.
Logo Capture & Display
Display your company logo or school mascot on your projector start-up screen background with our built-in image capture tool.
Command & Control
Whichever protocol or hardware control device you are using we offer compatibility will all major formats and devices.
Optimal Contrast Ratio
The implementation of advanced Iris dynamically adjusts the iris settings providing brightness optimization to best suit the content being displayed. Advanced iris gives dark scenes and content darker blacks and opens up on bright scenes to make optimum use of the projector's available light output. The resulting contrast levels are outstanding!
Screen Splicing
Need to see the detail in one part of an image or zoom in to display a different perspective? Our Screen Splicing allows you to cut the image into a 5x5 or less area and then take one section, or multiple sections, one at a time, and display it full screen.
Specifications
| Projector |
|---|
| Projector native resolution |
XGA (1024x768) |
| Native aspect ratio |
4:3 |
| Projection distance |
0.88 - 10.9 m |
| Contrast ratio (typical) |
2000:1 |
| Zoom capability |
Yes |
| Vertical synchronization (min) |
0.048 kHz |
| Vertical synchronization (max) |
0.085 kHz |
| Uniformity |
85% |
| Horizontal synchronization (min) |
15 kHz |
| Horizontal synchronization (max) |
100 kHz |
| Projection technology |
3LCD |
| Projector brightness |
3400 ANSI lumens |
| Zoom type |
Manual |
| Lamps |
|---|
| Lamp type |
UHP |
| Lamps quantity |
1 lamp(s) |
| Light source type |
Lamp |
| Service life of light source |
20000 h |
| Light source |
|---|
| Lamp type |
UHP |
| Lamps quantity |
1 lamp(s) |
| Light source type |
Lamp |
| Service life of light source |
20000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
19.11 - 22.94 mm |
| Offset |
14% |
| Zoom type |
Manual |
| Video |
|---|
| Full HD |
No |
| 3D |
No |
| Supported video modes |
2160p |

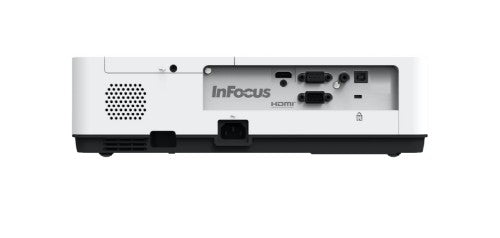

| Ports & interfaces |
|---|
| HDMI connector type |
Full-size |
| USB 2.0 Type-B ports quantity |
1 |
| HDMI version |
1.4 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Composite video in |
1 |
| Serial interface type |
RS-232 |
| DVI port |
No |
| Network |
|---|
| Smart TV |
No |
| Storage |
|---|
| Card reader integrated |
No |
| Sound emission |
|---|
| Noise level |
32 dB |
| Noise level (economic mode) |
26 dB |
| Technical details |
|---|
| Product colour |
White |
| Packaging content |
Projector, IR Remote Control (no batteries), Power Cord, VGA Cable, Setup Guide |
| Performance |
|---|
| Noise level |
32 dB |
| Noise level (economic mode) |
26 dB |
| Features |
|---|
| Noise level |
32 dB |
| Noise level (economic mode) |
26 dB |
| Certification |
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
WEEE, EU RoHS, China RoHS, CEL, CECP |
| Design |
|---|
| Product type |
Standard throw projector |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (max) |
300 W |
| Power source |
AC |
| Power consumption (standby) |
0.5 W |
| Power consumption (PowerSave) |
150 W |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Other features |
|---|
| Remote control type |
IR |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 50 °C |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating altitude |
0 - 3000 m |
| Certificates |
|---|
| Certification |
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
WEEE, EU RoHS, China RoHS, CEL, CECP |
| Weight & dimensions |
|---|
| Weight |
3.1 kg |
| Width |
345 mm |
| Depth |
99 mm |
| Height |
261 mm |
| Packaging content |
|---|
| Packaging content |
Projector, IR Remote Control (no batteries), Power Cord, VGA Cable, Setup Guide |
| Remote control included |
Yes |
| Remote control type |
IR |
| Manual |
Yes |
| Cables included |
AC, VGA |
| Batteries included |
No |
