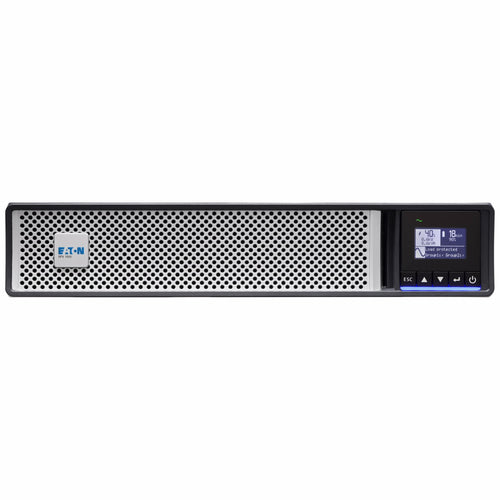

Eaton 5PX Gen2 uninterruptible power supply (UPS) Line-Interactive 1 kVA 1000 W 8 AC outlet(s)

Line-Interactive, 1000VA / 1000W, 8 x IEC C13 Out, LCD, Network card, Rack/tower, 2U

Description

Exceptional efficiency, manageability and energy metering capabilities for IT managers

Performance and efficiency

- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio.

Management and Cybersecurity

- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

Availability and flexibility

- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.

Specifications

Power
Output power	1000 W
Input operation voltage (min)	160 V
Input operation voltage (max)	294 V
Output power capacity	1 kVA
Performance
UPS topology	Line-Interactive
Waveform	Pure sine
LED indicators	Yes
Power protection features	Overdischarge
Noise level	40 dB
Features
UPS topology	Line-Interactive
Waveform	Pure sine
Output power	1000 W
Input operation voltage (min)	160 V
Input operation voltage (max)	294 V
Power protection features	Overdischarge
Noise level	40 dB
Output power capacity	1 kVA
Input frequency	47/70 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
Cabling technology	10/100/1000Base-T(X)
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Serial ports quantity	1
Battery
Typical backup time at half load	17 min
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Safety	IEC/EN 62040-1, UL1778, CSA22.2
Certification	IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85078000
Compliance certificates	CE
Weight & dimensions
Weight	19.6 kg
Width	438 mm
Height	85.5 mm
Depth	448 mm
Packaging data
Management card included	Yes
Logistics data
Harmonized System (HS) code	85078000
Certificates
Safety	IEC/EN 62040-1, UL1778, CSA22.2
Certification	IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Other features
Nominal output voltage	230 V
