Description

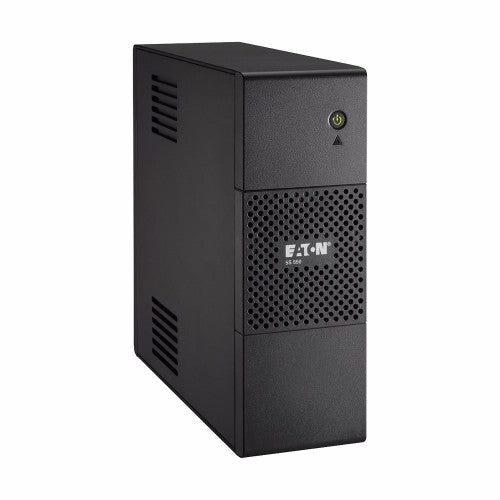

5S UPS, Line-interactive, 1000 VA, 600 W, C14 In, 4 x C13 out, 4 x C13 surge only, Tower, with BS input cord
Description
Eaton 5S 550i - UPS - AC 220/230/240 V - 330 Watt - 550 VA - 1-phase - 5 Ah - USB - output connectors: 4 - blackSpecifications
| Power | |
|---|---|
| Output power factor | 0.6 |
| Output power | 600 W |
| Input operation voltage (min) | 175 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 184 V |
| Output operation voltage (max) | 276 V |
| Efficiency | 97% |
| Power factor | 0.6 |
| Output power capacity | 1 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| LED indicators | Yes |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Power protection features | Overdischarge |
| Noise level | 25 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.6 |
| Output power | 600 W |
| Input operation voltage (min) | 175 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 184 V |
| Output operation voltage (max) | 276 V |
| Efficiency | 97% |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Power protection features | Overdischarge |
| Power factor | 0.6 |
| Noise level | 25 dB |
| Output power capacity | 1 kVA |
| Input frequency | 46/70 Hz |
| Ports & interfaces | |
| USB port | Yes |

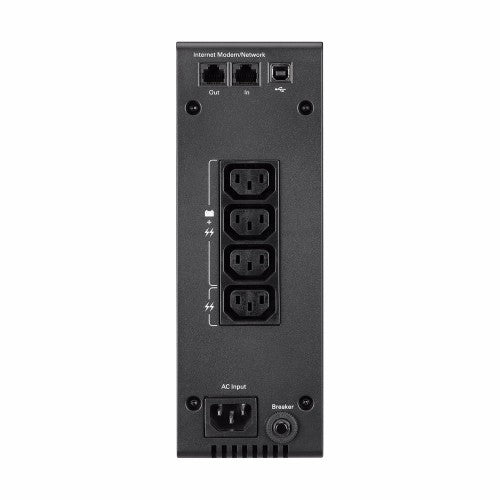

| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 1 |
| Battery voltage | 12 V |
| Battery capacity | 5 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 1 min |

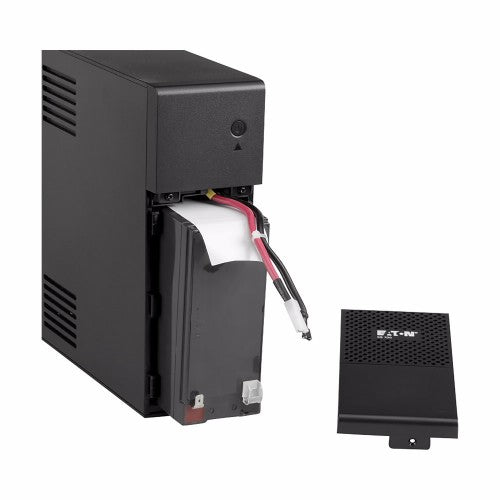

| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |

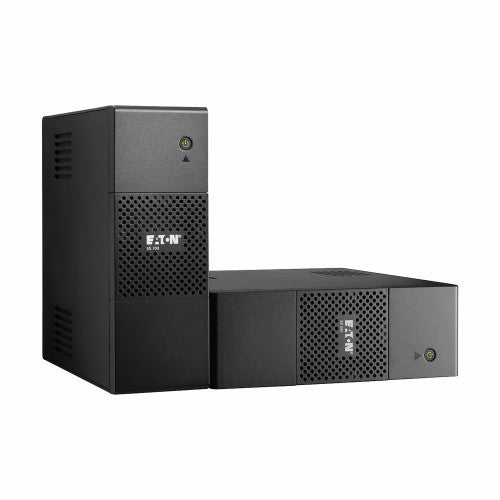

| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 EAC |
| Operational conditions | |
| Operating altitude | 0 - 2000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 5.9 kg |
| Width | 260 mm |
| Height | 250 mm |
| Depth | 87 mm |
| Packaging data | |
| Cables included | Input power cable, USB cable |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 EAC |
| Packaging content | |
| Cables included | Input power cable, USB cable |
