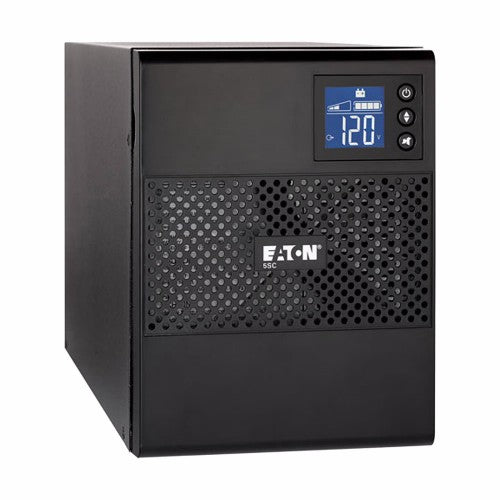

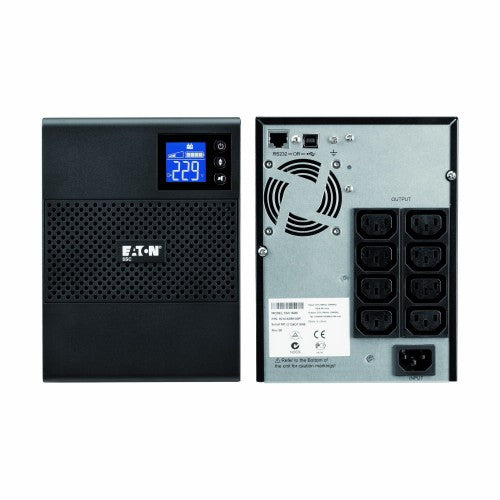

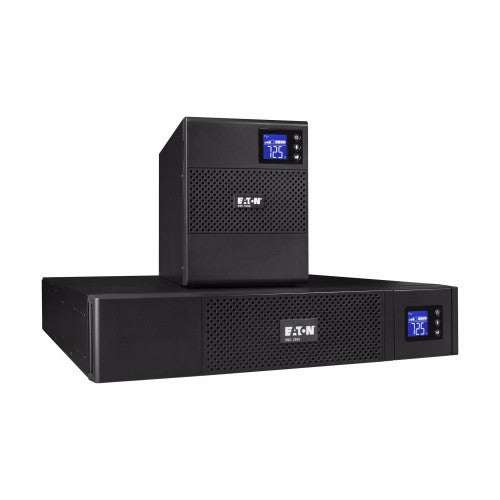

5SC UPS, Line-interactive, 1500 VA, 1050 W, Inpu: C14, Outputs 8 x C13, Tower, with BS input cord
Description

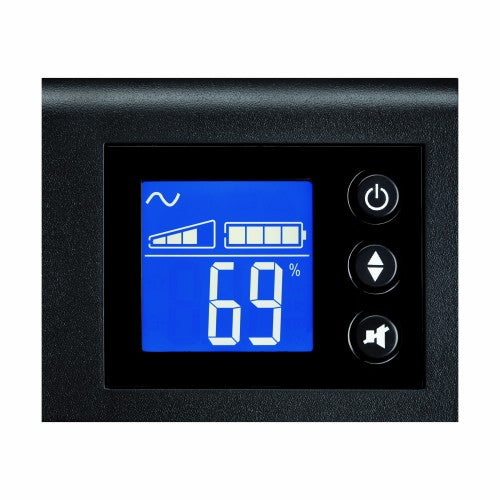

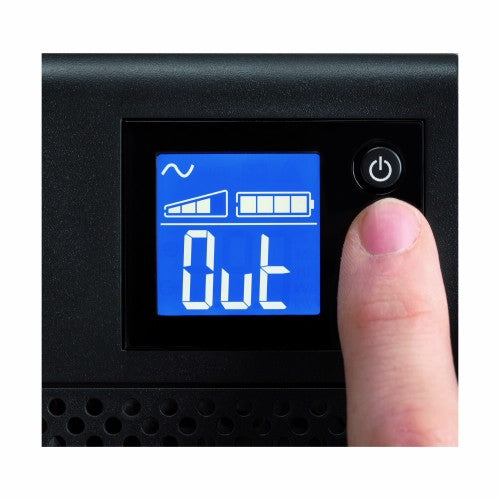

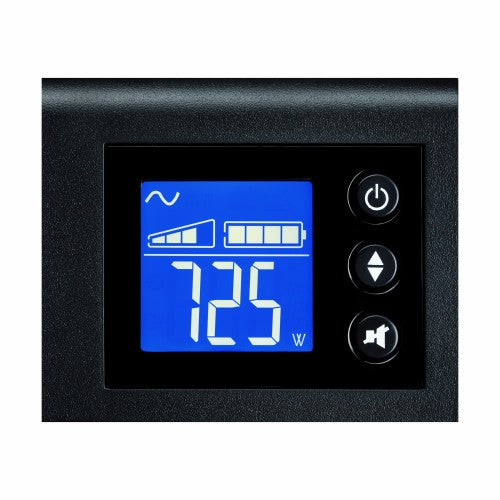

The Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business server in any kind of installation constraints. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, implements manageability solutions compatible with most of IT platforms and provides sinewave output for compatibility with most sensitive IT equipments.
Specifications
| Power |
|---|
| Output power factor |
0.7 |
| Output power |
1050 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
97% |
| Power factor |
0.7 |
| Output power capacity |
1.5 kVA |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output power factor |
0.7 |
| Output power |
1050 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
97% |
| Power protection features |
Overdischarge |
| Power factor |
0.7 |
| Noise level |
40 dB |
| Output power capacity |
1.5 kVA |
| Input frequency |
45/65 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |

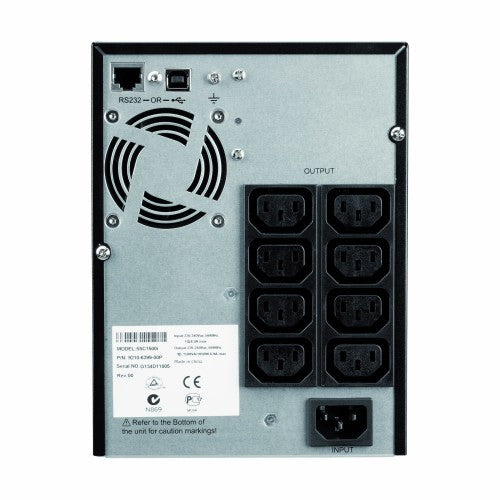

| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Battery |
|---|
| Number of batteries supported |
3 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at full load |
5 min |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Certification |
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
EAC
cTUVus |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 2000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE |
| Weight & dimensions |
|---|
| Weight |
16.5 kg |
| Width |
240 mm |
| Height |
300 mm |
| Depth |
550 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
No |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
EAC
cTUVus |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
No |
