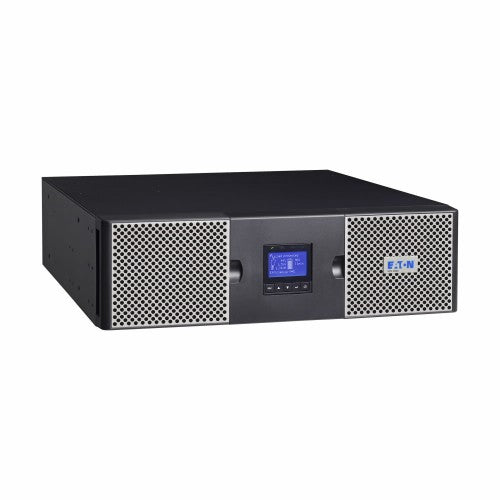

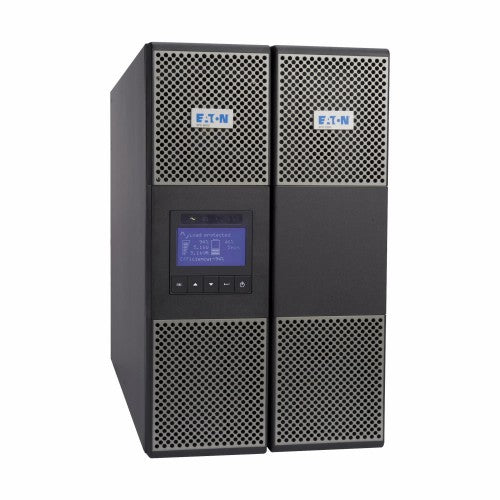

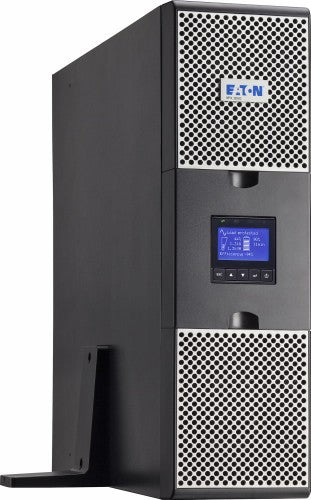

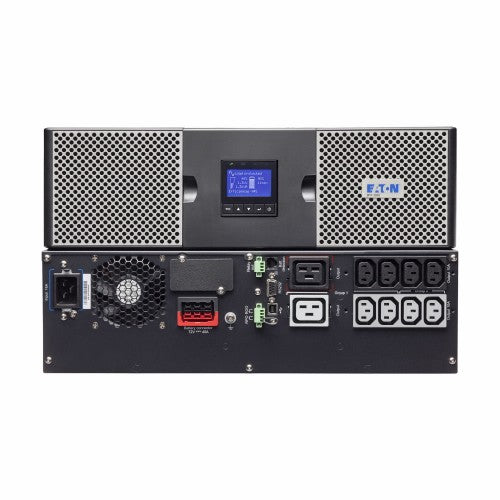

9PX UPS, Online/Double-conversion, 3000 VA, 3000 W, Input C20, Outputs 8 x C13 & 2 x C19, Rack/tower, 3U, with BS input cord
Description
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Specifications
| Power |
|---|
| Output power factor |
1 |
| Input power factor |
0.99 |
| Output power |
3000 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
94% |
| Power factor |
1 |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output power capacity |
3 kVA |
| Efficiency (ECO mode) |
98% |
| Ports & interfaces |
|---|
| Cable length |
1.8 m |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |

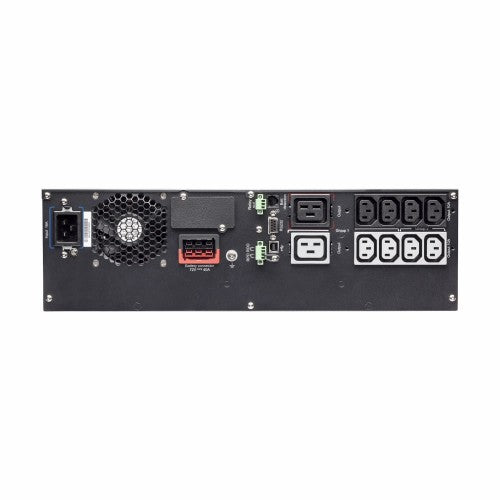

| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Power protection features |
Overdischarge |
| Noise level |
40 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Output power |
3000 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
94% |
| Power protection features |
Overdischarge |
| Power factor |
1 |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
40 dB |
| Output power capacity |
3 kVA |
| Efficiency (ECO mode) |
98% |
| Input frequency |
40/70 Hz |
| Battery |
|---|
| Number of batteries supported |
6 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at full load |
3 min |
| Automatic battery test |
Yes |
| Design |
|---|

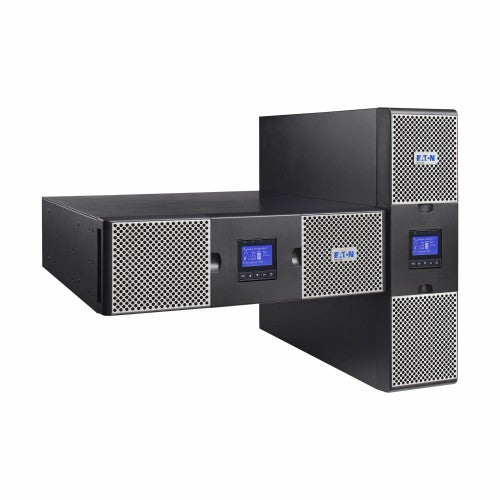

| Form factor |
Rackmount/Tower |
| Product colour |
Black, Silver |
| Certification |
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
cULus Listed
EAC |
| Cable length |
1.8 m |

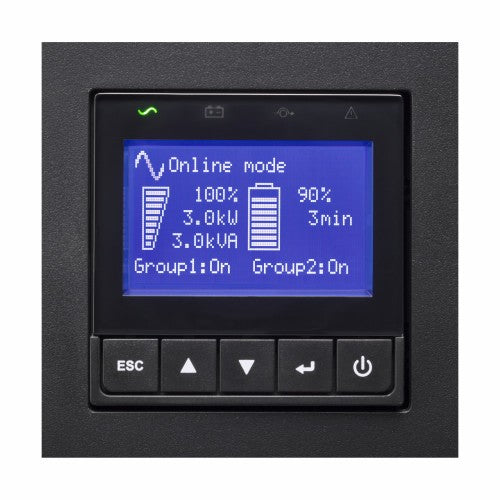

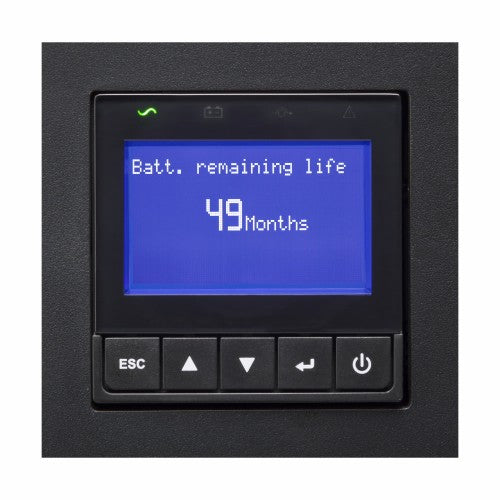

| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 96% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
CE |
| Weight & dimensions |
|---|
| Weight |
28 kg |
| Width |
570 mm |
| Height |
240 mm |
| Depth |
780 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
cULus Listed
EAC |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Input power cable, Serial, USB cable |
| Rack mount kit |
Yes |
